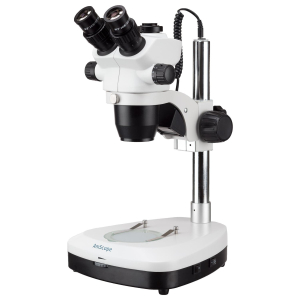

AmScope NM-2T NM-2 Series Zoom Trinocular Stereo Microscope 10X-45X Magnification on Pillar Stand w/ LED Light

AmScope NM-2T NM-2 Series Zoom Trinocular Stereo Microscope 10X-45X Magnification on Pillar Stand w/ LED Light
Click to zoom
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:AmScope
  • Part #:NM-2T
  • Model #:NM-2 Series
Condition: new
Warranty

Overview


AmScope NM-2 Series Zoom Trinocular Stereo Microscope 10X-45X Magnification on Pillar Stand with LED Light

Features:

  • Super widefield optical system offers crisp clear stereo images
  • Both top and bottom LED illumination
  • 10X-45X Continuous zoom magnification power
  • Large working distance and field of view
  • C-mount photo-port for adding camera

The NM-2T is a pillar-mounted trinocular stereo microscopy system with reflected and transmitted lighting. The pillar offers flexibility in positioning the focusing rack for a wider range of movement. The microscope provides 1X to 4.5X zoom-objective magnification, with 10X to 45X magnification when used with the 10X eyepieces. With 120mm working-distance, there is ample room for hands-on applications, such as soldering and dissection. A collar-mounted 3W LED provides incident illumination, while a sub-stage 1W LED provides transmitted illumination. A C-mount photo-port provides a stable, top-mounted platform for attaching a C-mount camera. An optional 23mm/30mm adapter (AD-C23) can be used for reduction lenses or eyepieces.

Specifications:

  • Head Type: trinocular stereo
  • Interpupillary Adjustment Range: 55-75mm
  • Objective: 1X-4.5X zoom
  • Photo-port: Threaded C-mount
  • Working Distance: 4.725in (120mm)
  • Eyepieces: 10X FN22 Plan
  • Focus Control: coarse
  • Pillar Height: 11.8in (300mm)
  • Pillar Travel Range: 7.5in (190mm)
  • Reflected Light-source: 3W LED
  • Transmitted Light-source: 1W LED
  • Packing List:

  • One Trinocular Stereo Zoom Head
  • One Pair of 10X Eyepieces
  • One Pair of Eye-guards
  • One LED Top-Light
  • One Pillar Stand with LED Illumination
  • One Focusing Rack
  • One Pair of Stage-Clips
  • One Dust Cover
  • One Power Cord
