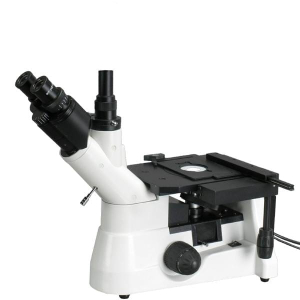

AmScope ME1400T-9M ME1400 Series Inverted Plan Optics Polarizing Metallurgical Trinocular Compound Microscope 40X-400X Magnification w/ 9MP USB 2.0 C-mount Camera
Click to zoom
  • Brand:AmScope
  • Part #:ME1400T-9M
  • Model #:ME1400 Series
  • Regular Price: $1,815.99
Out Of Stock
Safe Checkout
Fully secured
Money back Guaranty
100% satisfaction

Overview


Key Features:

  • 40X to 400X magnification range using four metallurgical objective lenses and 10X eyepieces for four unique settings.
  • An inverted microscope with simple polarization for manufacturing, QC, and materials analysis
  • Use a combination of brightfield and simple polarization to bring out complex details such as stress in metal and other materials.
  • The inverted format supports heavier and irregular samples like cut ore and metal fragments.
  • The trinocular head provides a dedicated photo port for adding a camera for recording photos and videos.
  • Monitor and capture photos and videos with the included 9MP USB 2.0 camera. Professional microscopy software for Windows, Mac, and Linux provide tools for image processing, measuring, and more.

This is a brand new professional trinocular inverted polarizing metallurgical microscope with Epi-Kohler illumination. It offers a range of magnifications designed to observe, identify and analyze the structures of metals and alloys. It comes with super widefield optics, polarizer & Analyzer, quintuple nosepiece, 30W wide band voltage (85V-230V) EPI-Kohler illumination, and double-layer mechanical stage with coaxial coarse & fine focusing. This microscope is ideal for studying metallography, heat treatment and metal physics. It is widely used in the inspection of crystal structures, integrated circuits, semiconductor chips, micro-electronics, and etc.

Using four plan-achromatic objective lenses from 4X to 40X, a broad range of magnifications can be covered. These highly corrected lenses produce sharp, flat images from 40X to 400X when used with the included 10X eyepieces.

Features :

  • A professional super widefield polarizing metallurgical inverted microscope!
  • 30W wide band (85V-230V) EPI-Kohler illumination with variable brightness
  • Polarizer & Analyzer included
  • Super widefield eyepiece with reticle
  • Fully coated optical system with high resolution
  • Sharp clear metallurgical microscopy images
  • Upright photo port for photographic/video capability
  • Diopter adjustment on ocular
  • Extra large 3-D double layer mechanical stage with stain resistant finish
  • Low position coaxial stage movement control knobs
  • Coaxial coarse & fine focusing with CA knob tension control
  • Top light house with filters
  • Dual side mounted focusing controls
  • Full optical glass elements
  • Precise ground glass lenses
  • All metal mechanical components
  • Adjustable interpupillary distance
  • Rugged cast alloy frame and stand with stain resistant enamel finish
  • Digital Imaging

    Monitor and capture photos and videos with the included 9MP USB2.0 camera. The C-mount camera is specially designed for use with microscopes, allowing you to watch live images, and to record photos or videos on your computer. This ability to view microscopic images on your computer reduces eye-strain, and allows groups of people to view images at the same time. A 0.5X reduction lens is included for use with 23mm-30.5mm ports to capture more of the microscope's field-of-view. Our professional software for Windows provides a wide assortment of capture and photo-editing functions including color correction, time-lapse capture, image stitching, and a full complement of measuring tools. A lite version of our software is available for Mac and Linux with essential functionality for capturing photos and videos.

    Specification :

  • Head: Compensation Free Trinocular Head, Inclined 45°
  • Eyepiece: 10X
  • Objective: 195 metallurgical objectives, 4X/0.1 (W.D .25mm), 10x/0.25 (W.D .11mm), 20X/0.4 (W.D .9mm) and 40X/0.6 (W.D. 3.8mm)
  • Nosepiece: quintuple
  • Interpupillary Distance: 2"-3" (50mm-75mm)
  • Mechanical Stage: two-layer; size: 9.53"x6.77" (242x172mm); traveling range: 3"x1.97" (75x50mm)
  • Central Stage: 4.33" (110mm) in diameter
  • Condenser: NA 0.3 Abbe with iris diaphragm, working distance: 3" (75mm)
  • Focus: coaxial coarse & fine focusing system rack and pinion with tension control; fine focusing scale value 0.000079" (0.002mm)
  • lllumination: Epi-Kohler 12V/30W, with aperture iris diaphragm and field iris diaphragm
  • Power Supply: AC 85V-230V
  • Filter: blue, green, yellow
  • Polarizing Outfit: analyzer 360 degree rotatable, polarizer & analyzer can be slided in/out of the optical path

  • Camera Specifications
    Sensor TypeCMOS
    Sensor Optical Format1/2.4"
    Active Pixels9M (3488 x 2616)
    Pixel Size1.67µm x 1.67µm
    Active Sensor Area5.82mm x 4.37mm
    Shutterelectronic rolling shutter
    Sensitivity0.31V/Lux-sec
    Spectral Response380-650nm with IR-cut filter
    Capture Resolution and Maximum Framerate1.9fps @ 3488x2616
    8fps @ 1744x1308
    27fps @ 872x654
    ConnectivityUSB 2.0
    Lens-mountC-mount
    Compensating Lens0.5X
    Power5VDC over USB

    Software

    OS RequirementsWindows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
    Hardware RequirementsIntel Core2 2.8GHz or comparable processor, 4GB RAM
    Features
    Windows Version
    Live video preview
    Captures still images and video
    Time-lapse capture
    Exposure and white-balance controls
    Dark-field correction
    Digital binning
    Image processing
    Measurement tools, including lines, arcs, polygons
    Segmentation and counting tools
    Image-stitching, extended depth-of-field, HDR
    Fluorescence color-mapping
    Mac/Linux Versions
    Live video preview
    Captures still images and video
    Exposure control
    Color adjustment
    Measurement tools, including lines, arcs, polygons

    Packing List:

  • One trinocular inverted microscope
  • Four metallurgical objectives: 4X, 10X, 20X, 40X
  • One pair 10X eyepieces
  • One super widefield 10X eyepiece with reticle
  • One 30W halogen bulb
  • One dust cover
  • color filters
  • One power cord (North America standard)
  • One C-mount USB camera
  • One 0.5X reduction lens
  • Two sizing adapters
  • One USB Type B to USB type A cable
  • One software CD
