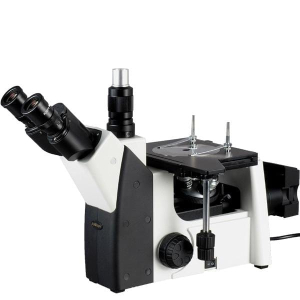

AmScope ME1200TB-8M ME1200 Series Inverted Plan Optics Metallurgical Trinocular Compound Microscope 50X-1000X Magnification w/ 8MP USB 2.0 C-mount Camera
- Overview
- Customers Also Bought
- Your Recently Viewed Items
- Reviews










Overview
Key Features:
- 50X to 1000X magnification using four metallurgical objective lenses and 10X and 20X eyepieces for six unique settings.
- A compact inverted microscope for manufacturing, QC, and materials analysis, with a powerful 5W LED light-source
- Four plan-achromatic objective lenses provide magnifications ranging from 50X to 500X
- The inverted format supports heavier and irregular samples like cut ore and metal fragments.
- The trinocular head provides a dedicated photo port for mounting a camera.
- Monitor and capture photos and videos with the included 8MP USB 2.0 camera. Professional microscopy software for Windows and Mac provide tools for image processing, measuring, and more.
This trinocular inverted metallurgical microscope comes with a trinocular microscope Siedentopf head, four Plan Achromatic objectives, a large mechanical stage and a 8MP digital camera, offering six magnification settings, 50X, 100X, 200X, 400X, 500X & 1000X. The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features. This microscope is perfect for metallurgical labs, foundries for silicon wafer inspection, and quality control applications.
Features :
- A inverted metallurgical Plan optical metallographic microscope with digital camera
- Wide band power supply system from 90V to 240V
- Fully coated optical system with high resolution
- Four DIN standard Plan objectives included
- Two pairs of Plan widefield eyepiece included
- Intensity-variable halogen illumination
- Large mechanical stage with stain resistant finish
- Coaxial coarse and fine focusing
- Focusing tension control mechanism
- Low position stage traveling controls
- Full optical glass elements
- Precise ground glass lenses
- All metal mechanical parts
- Dual side focusing controls
- Adjustable interpupillary distance
- Adjustable diopters on both eye tubes
- Solid metal frame construction with stain resistant enamel finish
- Manufactured Under ISO 9001 Quality Control Standard
- Excellent Five (5) Year Factory Warranty
Specifications :
- Head: 45 degree inclined trinocular
- Nosepiece: quadruple
- Focusing Range: 1-5/16" (33mm)
- Interpupillary Adjustment Range: 2-3/16" - 3-0" (55 - 75mm)
- Mechanical Tube Length: 6-5/16" (160mm)
- Camera/Video Trinocular Port: 23mm universal/standard photo tube
- Eyepieces: WF10X (18mm Field of View), WF20X
- Objectives: Plan Achromatic 5X (0.1 NA), 10X (0.25 NA), 20X (0.40 NA), 50X (Spring, 0.65 NA)
- Stage Dimensions: 7-3/32"x 6-1/8" (180x155mm)
- Stage Traveling Range: 3-0"x 1-9/16" (75x40mm)
- Venire Division: 0.00004" (0.001mm)
- Illumination: 5W LED, 90V-240V wide band, CE certified
Camera Specifications:
- Sensor: Aptina
- Sensor Type: CMOS
- Sensor Size: 5.45x4.09
- Pixel Size: 1.67
- Resolution: 8.0MP
- Frame Rate: 1.9@3264x2448, 8@1600x1200, 27@800x600
- Sensitivity: 0.31 V/lux-sec
- Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
Software Specifications:
- OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
- Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port
Packing List :
- 1 Trinocular Microscope Siedentopf Head
- 1 Inverted Body Frame with Mechanical Stage and Illumination System
- 1 Pair of Plan 10X Widefield Eyepieces
- 1 Pair of Widefield 20X Eyepieces
- 1 Plan Achromatic Metallurgical Objectives, 5X, 10X, 20X and 50X
- 1 8MP USB2.0 Digital Camera with Reduction Lens
- 1 USB Cable
- 2 Camera Adapters
- 1 Power Cord
- 1 Dust Cover
- 1 User's Manual Download
- Shipping Weight: 30 lbs
