AmScope MD8211S30-A183V 40X-2000X 3MP Digital Integrated Microscope w/ LED Illumination + Vinyl Case
Click to zoom
Out Of Stock
Safe Checkout
Fully secured
Money back Guaranty
100% satisfaction

Overview


Key Features:

  • This digital-integrated binocular microscope is ideal for clinics, vets, and classrooms, with optional accessories for advanced applications.
  • Stream and capture live images to your computer with this binocular compound microscope with integrated 3MP camera.
  • 40X to 2000X magnification with four objective lenses and two sets of eyepieces.
  • Daylight-balanced, low-heat LED light-source provides bright transmitted illumination for viewing and imaging specimens.
  • Double-layer mechanical stage and coaxial coarse and fine focus for easy, precise adjustments.
  • Includes a vinyl case for transportation and protection.

OMAX Digital Microscopes integrate advanced digital-imaging with precision optical-microscopy. Digital-integration promotes uniformity, and presents a simplified method for setting up and using microscopes. A simple USB connection allows you to view real-time images on your PC. The integrated camera can be used for monitoring and recording still images and video. The included Windows software features a wide range of measurement and editing tools, lending itself perfectly to the classroom or clinic with its ability to record, measure, and comment.
OMAX provides a large range of solutions for education, research, and industry. Building on industry standards, we provide a full range of accessories to suit your needs.

The OMAX MD8211S30 adds modern ergonomics to a time-tested design. Fundamental functionality is upgraded with Siedentopf ocular-adjustment, easy-grip coaxial focusing, and a reversed lens-turret for superior space-management. LED illumination provides daylight-balanced light, ideal for digital-imaging using the 3-megapixel integrated camera.

The MD8211 series microscope uses a binocular viewing head. To customize the microscope to your viewing comfort, the eyepiece spacing can be easily adjusted using a precision Siedentopf mechanism. A diopter is available on the left ocular tube to compensate for asymmetry, and the ocular tubes are angled at 45° to accommodate sitting or standing. Various eyepieces can be used to increase the overall optical magnification without changing the camera's magnification.

The objective turret provides instant access to 4 magnification levels to easily focus in on minute details from 40X to 1000X. For traditional viewing, additional 20X eyepieces extend the maximum magnification to 2000X, and provides 8 distinct levels of magnification. The high-quality lenses are achromatically corrected to improve resolution and color accuracy.

The 2-layer mechanical stage provides smooth and precise movement for examination of specimen slides. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Variable-intensity LED lighting offers bright, daylight-balanced illumination to produce high-contrast, color-correct images.

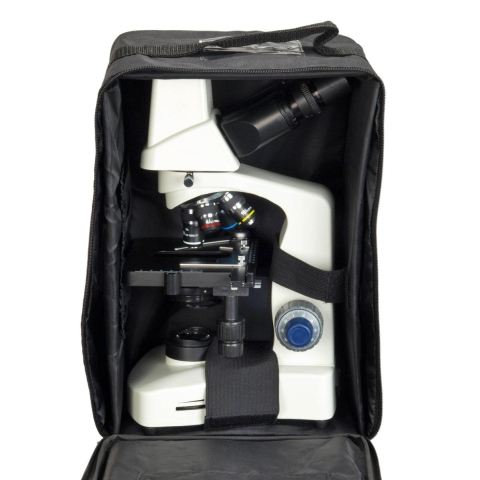

A light-weight vinyl case is included to keep your microscope safe. The zip-up case can be used for easier transportation. It can also be used for storage to limit exposure to dust and humidity.

Specifications

Optical SystemFinite-conjugate
Tube Length160mm
HeadDigital-integrated binocular, 30° incline, 360° rotatable
Interpupillary AdjustmentSiedentopf, 48-75mm
Ocular Diameter23mm
Eyepieces10X, 20X
Objective Turretquadruple, reversed
Focusing Systemcoaxial coarse and fine focus
Stage2-layer mechanical
Stage Dimensions140mm x 110mm
Stage X-Y Travel Range78mm x 40mm
Specimen HoldersSlide caliper
Transmitted IlluminationLED, variable intensity
CondenserAbbe condenser with iris diaphragm, NA1.25
Sub-stage Condenser-holderRack-and-pinion
Power100-240VAC 50/60Hz wide-band

Objective Lenses

MagnificationCorrectionsNAImmersion MediumCover-glass Thickness
4Xachromatic0.10none0.17mm
10Xachromatic0.25none0.17mm
40Xachromatic0.65none0.17mm
100Xachromatic1.25oil0.17mm

Camera Specifications
Sensor TypeCMOS
Sensor Optical Format1/2.5"
Active Pixels3M (2048 x 1536)
Shutterelectronic rolling shutter
Capture Resolution and Maximum Framerate4fps @ 2048x1536
10fps @ 1024x768
ConnectivityUSB 2.0
Power5VDC over USB

Software

OS RequirementsWindows (32/64 bit) XP/Vista/7/8/10
Hardware RequirementsIntel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port
Features
Windows Version
Live video preview
Captures still images and video
Exposure and white-balance controls
Image processing
Measurement tools, including lines, arcs, polygons

Packing List:

  • Digital binocular microscope head
  • Microscope body
  • 4 objectives: 4X, 10X, 40X, 100X
  • One pair of 10X eyepieces
  • One pair of 20X eyepieces
  • One sample bottle of immersion oil
  • Power cord (US and Canada standard)
  • Dust cover
  • Color filter (green)
  • CD (camera driver and software)
  • USB2.0 cable
  • One vinyl case
