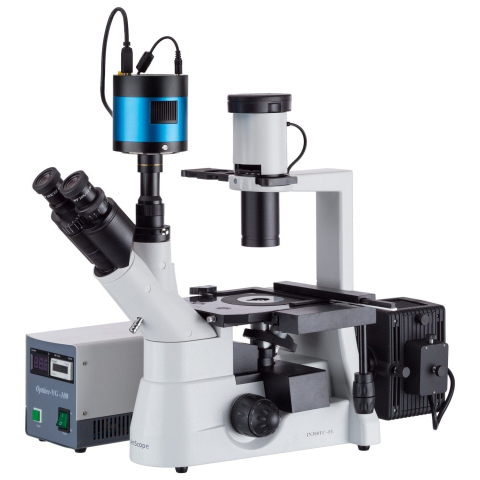

AmScope IN300T-FL-MF143 IN300 Series Inverted Epi-fluorescence Trinocular Compound Microscope 40X-400X Magnification w/ 1.4MP Cooled Monochrome CCD Camera
Click to zoom
  • Brand:AmScope
  • Part #:IN300T-FL-MF143
  • Model #:IN300 Series
  • Regular Price: $7,873.99
Safe Checkout
Fully secured
Money back Guaranty
100% satisfaction

Overview


Key Features:

  • 40X to 400X magnification range using a quadruple lens turret for four unique settings.
  • An inverted epi-fluorescence microscope with blue and green excitation blocks and a high-power HBO arc-lamp for broad-spectrum coverage.
  • The inverted format is a stable, ergonomic platform for cell cultures, multi-well plates, and larger specimen containers.
  • The infinity-corrected optical system ensures high-quality, high-resolution images.
  • Specialized 10X and 20X objective lenses are included for phase-contrast applications.
  • The trinocular photo port provides a dedicated interface for mounting a camera.
  • 1.4MP ultra-sensative monochrome CCD camera for low-light applications with active cooling for reduced noise-floor
  • Professional software suite for Windows with advanced imaging functions and fluorescence tools. Lite version for Mac and linux

The IN300T-FL is an inverted fluorescence microscope built for professional laboratories and universities focused on live-cell studies and a range of genetic research. It provides all of the necessary features for fluorescence, brightfield, and phase-contrast microscopy in an intuitive and economical design. Plan-fluor lenses provide a higher level of optical corrections and resolution for improved clarity.

The Viewing Head

The viewing head has a 45° incline and Siedentopf interpupillary adjustment for flexibility and comfort. Super-widefield optics provide a larger field-of-view so you can see more specimen at any magnification. For users with astigmatism or asymmetrical vision, the right ocular can be adjusted to fine-tune focus. The trinocular format provides a dedicated photo-port for mounting a microscopy camera for capturing photos or videos. The 23mm photo port is height-adjustable to match focus with the eyepieces.

Optics

The infinity-corrected optical system eliminates optical errors and ensures highly precise images. The quadruple objective turret provides instant access to 4 magnification levels. This allows you to efficiently move through magnifications from 40X to 400X. These high-quality lenses are semi-apochromatically corrected for superior optical corrections and transmittance, with planatic flat-field correction to provide edge-to-edge sharpness.

The Stage

The large stage can accommodate slides, multi-well plates, dishes, and short flasks. Two plates are supplied for the stage's aperture, including glass and key-holed metal for varying light control. A large mechanical caliper can hold and position any of the sample templates for precision placement.

Transmitted Illumination

The transmitted illumination system uses a fixed-height, 30W incandescent light-source with integrated condenser, and slots for filters and a phase-annulus board. The annulus board provides two centerable phase-contrast annuli, as well as an open setting which can be used with colored filters for band-isolation or color-correction.

Phase Contrast

The 10X and 20X objective lenses are equipped with phase rings for phase-contrast observation. By sliding the provided phase-annulus board into the overhead lamp, the transmitted lighting is quickly changed to work with the objective lenses to enhance contrast in hard-to-see samples such as live cells which cannot be stained. By manipulating variances in phase caused by changing refractive indices, once imperceptible details can present as transitions from dark to light.

Epi-fluorescence Illumination

For fluorescence applications, a 100W mercury-vapor arc lamp provides a powerful, broad-spectrum light-source for excitation. The included blue and green excitation filter blocks cover a large range of popular fluorophores. Optional ultraviolet and violet excitation filters are also available.

Fluorescence

Filters
Filter SetExcitation FilterEmission Filter
B450-490nm520nm
G510-560nm590nm
Mercury HBO Excitation

Mercury HBO lamps produce a wide spectrum of wavelengths, including ultraviolet. While this fluorescent light-source can excite fluorophores throughout its entire spectrum, there are peak wavelengths with optimal output. The included filter blocks will accommodate a wide range of fluorophores, although the nature of mercury arc lamps limits effectiveness outside of the peak wavelengths.

BandPeak Wavelength
UV334nm, 365nm
V405nm
B436nm
G546nm
Y578nm

Digital Imaging

The ultra-sensitive 1.4MP monochrome CCD digital camera provides a temperature-controlled, low-light imaging solution, ideal for fluorescence microscopy. The large, highly-sensitive (2000mV/µm2) CCD sensor produces low-noise images, thanks in-part to a controllable internal cooling unit. The camera captures still images and video, and allows you to view a live stream on your PC. Because of the CCD's "global shutter" design, it eliminates rolling-shutter artifacts. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

Specifications

Optical SystemInfinity-corrected
HeadTrinocular, 45° incline
Interpupillary AdjustmentSiedentopf compensation-free gemel, 50mm-75mm
Ocular Diameter30mm
Ocular Dioptersright ocular
Eyepieces10X
Photo-portheight-adjustable 23mm tube
Objective LensesInfinity-corrected
Objective TurretQuadruple
Focusing System
Focus AdjustmentCoaxial Coarse/Fine, adjustable tension
Fine Division0.002mm
Stagefixed-height, mechanical X-Y translation
Stage Dimensions172mm x 242mm
Stage X-Y Travel Range75mm x 40mm
Specimen HoldersTerasaki plate, Petri dish
Episcopic Illumination (Fluorescence)100W mercury HBO arc-lamp, centerable
Transmitted Illumination12V 30W halogen
variable intensity
CondenserNA 0.3, iris diaphragm, filter slot
Power110VAC 60Hz

Objective Lenses

MagnificationCorrectionsNAWorking DistanceCover-glass Thickness
4Xplan fluor0.1528mm1.5mm
10Xplan fluor, phase-contrast0.303mm1.5mm
20Xplan fluor, phase-contrast0.504.27mm1.5mm
40Xplan fluor0.602.23mm1.5mm

Camera Specifications
Sensor TypeInterline CCD (monochrome)
Sensor Optical Format2/3"
Active Pixels1.4M (1360 x 1024)
Pixel Size6.45µm x 6.45µm
Active Sensor Area8.77mm x 6.6mm
Shutterglobal shutter
Sensitivity2000mV @ 1/30s
Spectral Response380-650nm with IR-cut filter
Capture Resolution and Maximum Framerate25fps @ 1360x1024
ConnectivityUSB 3.0
Lens-mountC-mount
Compensating Lens0.67X/0.75X

Software

OS RequirementsWindows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
Hardware RequirementsIntel Core2 2.8GHz or comparable processor, 4GB RAM
Features
Windows Version
Live video preview
Captures still images and video
Time-lapse capture
Exposure and white-balance controls
Dark-field correction
Digital binning
Image processing
Measurement tools, including lines, arcs, polygons
Segmentation and counting tools
Image-stitching, extended depth-of-field, HDR
Fluorescence color-mapping
Mac/Linux Versions
Live video preview
Captures still images and video
Exposure control
Color adjustment
Measurement tools, including lines, arcs, polygons

Packing List:

  • One microscope body
  • Four objectives lenses: 4X, 10X(Ph), 20X(Ph) and 40X
  • One pair 10X eyepieces
  • One phase-contrast annulus board
  • One top-mount illuminator
  • One rear-mount fluorescence illuminator
  • One power supply for fluorescence illuminator
  • One UV blocking shield
  • One 30W halogen bulb
  • One 100W mercury bulb
  • One dust cover
  • Color filters
  • Two power cords
  • One C-mount TEC USB camera
  • One power adapter
  • One AC power cord (North America plug)
  • One USB 3.0 cable
  • One software CD
  • One heavy-duty case
