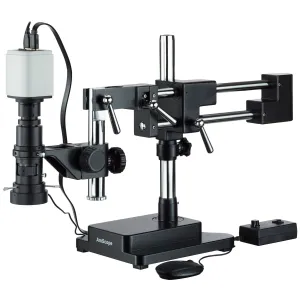

AmScope H800-DAB-96S-HD1080 H800 Series Zoom Digital Inspection Monocular Stereo Microscope 0.7X-5X on Boom Stand w/ 1080p 60fps 2MP HDMI and Light

AmScope H800 Series Zoom Digital Inspection Monocular Stereo Microscope 0.7X-5X Magnification on Boom Stand with 1080p 60fps 2MP HDMI and Ring Light

Features:

• High-detail inspection microscope
• 1080p 60fps HDMI camera
• Cool, even LED illumination
• Heavy-duty double-arm stand
• A flexible, turnkey industrial inspection stytem

The H800 is an extremely high-detail monocular inspection microscope with a 0.7X to 5X zoom range. Mounted on a heavy-duty double-arm stand, this microscope is the ideal tool for inspection applications. The included LED ring-light offers even, cool illumination. The 1080p 60fps camera provides crystal-clear, stutter-free video for live monitoring and recording via the HDMI interface. Attach it directly to a monitor or television, and use the built-in software for turnkey video inspection. Attach it to a PC via its USB 2.0 interface, and use the included software to record still images and video up to 30fps.

Features:

• 0.7X-5.0X zoom objective
• C-mount lens
• Long working distance
• Sharp images over a super wide field view
• Large Metal stand and framework

Specifications :

• Zoom microscope objective: 0.7X-5.0X
• Mount: 0.4X C-mount
• Working distance: 4-1/8" (105mm)
• Stand is 30" Overall Length
• 20" Double Arms
• 17" High Pillar
• 10-1/4" x 8-1/4" x 2-0" Solid Cast Steel Base
• Color: black

Camera Specifications:

• Sensor: Sony IMX236 CMOS
• Sensor Size: 1/2.8"
• Preview and Capture Resolution: 3264x1840 (SD Card), 3264x1840, 1920x1080 (PC)
• Video Resolution: 1920x1080
• Live Frame Rate: 60fps @ 1920x1080 via HDMI, 30fps @ 1920x1080 via USB2.0 & SD Card Slot Recording
• Recording Frame Rate: 30fps @ 1920x1080
• Image Storage: SD Card Slot
• Scan Mode: Progressive
• Exposure Time: 0.001 sec ~ 10.0 sec
• White Balance: Auto
• Settings: Gain, Gamma, Saturation, Cotraction
• Screen Built-in Software: Cloud 1.0
• PC Software: ISCapture
• Interfaces: USB2.0, HDMI
• Compatibility: Windows XP/7/8 (32/64 bit)
• Optical Port: Standard C-mount
• Power Supply: DC 12V / 2A
• Dimensions: 78mm x 70.8mm x 90.7mm

Built-in Software Features

• Captures Still Images & Records Video
• 1080p Video Recording (30 fps)
• Auto Exposure & Manual Exposure Setting Options
• Saturation, Brightness, Contrast, & Tint Options
• Auto White Balance Functionality
• 3D Noise Reduction
• ROI Magnification Functions (Image Flip, Rotation, ROI)
• Image Side by Side Comparison Functionality
• Built-in File Browser
• Lifetime software updates

Computer Software Features

• Compatible with Windows XP/Vista/7/8 (32 & 64 bit)
• Computer Requirements: CPU Equivalent to Intel Core2 2.8GHz or higher, Memory: 2GB or more, USB2.0 port
• Preview live images right on your computer
• Record images and video (30 fps record rate over USB2.0)
• Auto and manual control of exposure, gain, white balance, gamma, contrast, saturation, and more
• Lifetime software updates

Packing List :

• One Monocular Zoom Microscope Head with 0.7-5.0X Objective and 0.4X C-Mount Lens
• One Focusing Rack
• One Double-arm Heavy-duty Stand
• One Dust Cover
• User's Manual Download
• One 96-LED ring-light
• One Control Unite for Light
• One AC Adapter for Light
• One 1080P Digital Camera
• One USB Mouse
• One HDMI Cable
• One USB Cable
• One Software CD
• One AC Adapter for Camera
