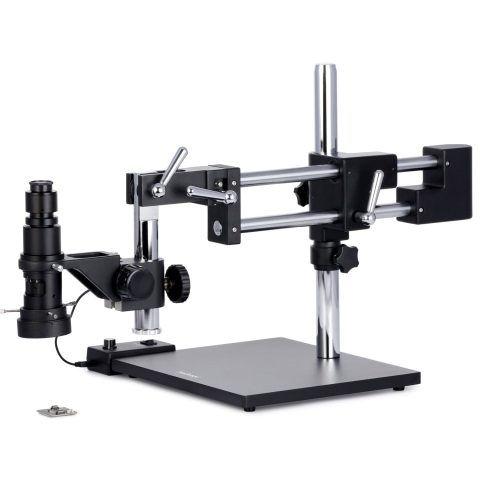

AmScope H800-DAB-96S-AF2 H800 Series Zoom Inspection Monocular Stereo Microscope 0.7X-5X on Double-Arm Boom-Stand w/ LED Ring Light and 1080P 2MP HDMI Auto-focus Camera
Click to zoom
  • Brand:AmScope
  • Part #:H800-DAB-96S-AF2
  • Model #:H800 Series
  • Regular Price: $1,628.99
Safe Checkout
Fully secured
Money back Guaranty
100% satisfaction

Overview


Key Features:

  • A highly-versatile zoom microscope on a heavy-duty, multi-pivot, double-arm boom-stand which allows the microscope to easily swing into place when needed, and away when not.
  • Monocular C-mount microscope with extremely sharp 0.7X-5.0X zoom objective and integrated 0.4X reduction element ideal for cameras with 1/2" format sensors
  • Includes a 96-LED ring-light for bright, even illumination
  • Produces sharp images over a wide field of view, with plenty of room to work with its long working distance
  • Includes an auto-focus 1080p/2MP multi-function camera with built-in recording that can stream live video over HDMI and connect to a computer using wi-fi

The H800 is designed specifically for photomicrography, providing 0.7X-5X zoom magnification and a C-mount interface for most professional microscope cameras. While stereo microscopes are the preferred choice for low-magnification work like micro-soldering and dissection, the stereo lens design is not optimal for producing accurate photos or videos due to off-axis, angular distortion and keystoning. This single-lens microscope provides the same magnification range, but without the distortion.

The 0.7X-5X zoom objective lens produces exceptionally sharp images throughout the entire range. The C-mount camera interface is height-adjustable, allowing precise parfocal adjustments to keep the lens in focus throughout the zoom range. The microscope has an integrated 0.4X reduction element optimized for cameras using 1/2" format sensors, providing more field-of-view.

An optional adapter is available (AD-C23) to convert the C-mount interface into a 30mm or 23mm tube which can be used with eyepieces or camera reduction lenses. If you choose to use this microscope with an eyepiece or one of our 23mm DSLR adapters, this optional adapter is exactly what you would need.

The multi-pivoting, double-arm stand provides a stable, flexible support system, ideal for hands-on work. Use of a drop-down column allows the microscope lens to be positioned at virtually any angle. Ball-bearings provide smooth movement of the lateral arms, which can easily pivot the microscope out of the way when it is not needed. The heavy, steel base ensures the stability of the microscope, even when laden with attachments.

This model includes a 96-LED ring-light to provide bright, even lighting. Mounted on the microscope, the light follows the lens so the subject is always illuminated. The light intensity is controlled by a wired, remote power module which keeps control at your fingertips.

This microscope comes with a cutting-edge auto-focus camera designed specifically for microscopy. It offers 1080p live-viewing over HDMI, and can record 2MP photos and video directly to Secure Digital media. The internal software provides control over exposure and color, and tools for measurements and comparisons. The addition of auto-focus limits the need to make focus-adjustments when using the camera as the primary means of observation.

Connected to an HDMI monitor or TV, 1080p live video can be viewed at a super-smooth 60fps. The included USB mouse allows you to control the camera through its easy-to-use interface. As an alternative solution, connect to the camera over WiFi for remote software control, with 25fps streaming. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

Specifications

Lens
Optical SystemFinite-conjugate
Objctive Magnification0.7X-5X continuous zoom
Objctive Numerical Aperture0.02-0.07
Objective Resolution63 lp/mm @ 0.7X
180 lp/mm @ 5X
Optical CorrectionsSemi-Apochromatic
Camera MountC-Mount (25.4mm)
Integrated Reduction0.4X
Working Distance105mm
Lens Mounting Diameter50mm

Stand
Stand TypeDAB double-arm boom-stand with ball-bearing movement, cast-steel base
Stand Dimensions20" double-arm (overall length: 30"), 17" high pillar, 10-1/4"x8-1/4"x2"
Focusing-block Focus Range42mm

Illuminator
Illuminator Type96-LED ring light with wired remote
Power Output4.5W
Brightness15000lux @ 100mm
Color Temperature6400K
Power Requirements110-240V, 50-60HZ, auto-switching wide-band

Camera Specifications
Sensor TypeCMOS
Sensor Optical Format1/1.9"
Active Pixels2.07M (1920 x 1080)
Pixel Size3.75µm x 3.75µm
Active Sensor Area7.2mm x 4.05mm
Shutterelectronic rolling shutter
Sensitivity1120mV @ 1/30s (f/5.6)
Spectral Response380-650nm with IR-cut filter
Video Preview Resolution (HDMI)1920 x 1080
Video Preview Framerate (HDMI)60fps
Video Capture Resolution1920 x 1080
Video Capture Framerate30fps (SecureDigital)
25fps (wi-fi)
Internal Video Capture FormatASF
Photo Capture Resolution1920 x 1080
Internal Photo Capture FormatJPG
Recording MediaSecureDigital card
ConnectivityHDMI, wi-fi
Wi-fi Standard802.11n 150Mbps
Lens-mountC-mount
Compensating Lens0.5X
Power12VDC 1A

Software

OS RequirementsWindows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
Hardware RequirementsIntel Core2 2.8GHz or comparable processor, 4GB RAM
Features
Windows Version
Live video preview
Captures still images and video
Time-lapse capture
Exposure and white-balance controls
Dark-field correction
Digital binning
Image processing
Measurement tools, including lines, arcs, polygons
Segmentation and counting tools
Image-stitching, extended depth-of-field, HDR
Fluorescence color-mapping
Mac/Linux Versions
Live video preview
Captures still images and video
Exposure control
Color adjustment
Measurement tools, including lines, arcs, polygons

Packing List:

  • One monocular zoom microscope
  • One double-arm boom-stand
  • One focusing block
  • One 96-LED ring-light
  • One power control unit for ring-light
  • One power cord
  • One digital camera
  • One USB mouse
  • One USB wi-fi dongle
  • One HDMI Cable
  • One SD card
  • One power adapter
  • One software CD
