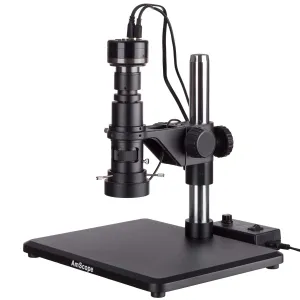

AmScope H800-96S-HC2 H800 Series Zoom Digital Inspection Monocular Stereo Microscope 0.7X-5X on Pillar Stand w/ 1080p HDMI Camera, Ring Light

AmScope H800-96S-HC2 H800 Series Zoom Digital Inspection Monocular Stereo Microscope 0.7X-5X on Pillar Stand w/ 1080p HDMI Camera, Ring Light
Click to zoom
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:AmScope
  • Part #:H800-96S-HC2
  • Model #:H800 Series
Condition: new
Warranty
Out Of Stock

Overview


AmScope H800 Series Zoom Digital Inspection Monocular Stereo Microscope 0.7X-5X Magnification on Pillar Stand with 1080p 60fps HDMI Camera, Ring Light and C-mount Camera

Features:

  • 0.7X-5X zoom magnification range and integrated 0.4X reduction lens for 1/2" format sensors
  • Monocular C-mount microscope with extremely sharp 0.7X-5.0X zoom objective
  • Includes a 96-LED ring-light for bright, even illumination
  • Produces sharp images over a wide field of view, with plenty of room to work with its long working distance
  • Stable table-stand with metal framework with solid base plate
  • Includes a 1080p ultra-sensitive multi-function camera for streaming live images over HDMI, and recording photos and videos to MicroSD.

The H800 is designed specifically for photomicrography, providing 0.7X-5X zoom magnification and a C-mount interface for most professional microscope cameras. While stereo microscopes are the preferred choice for low-magnification work like micro-soldering and dissection, the stereo lens design is not optimal for producing accurate photos or videos due to off-axis, angular distortion and keystoning. This single-lens microscope provides the same magnification range, but without the distortion.

The 0.7X-5X zoom objective lens produces exceptionally sharp images throughout the entire range. The C-mount camera interface is height-adjustable, allowing precise parfocal adjustments to keep the lens in focus throughout the zoom range. The microscope has an integrated 0.4X reduction element optimized for cameras using 1/2" format sensors, providing more field-of-view.

This package includes a table-stand with an 11" pillar and a focusing block. The focusing block uses a model-specific collar for mounting the lens, and symmetrical, tension-adjustable coarse focus knobs. The large base provides ample working area and stability.

This model includes a 96-LED ring-light to provide bright, even lighting. The light intensity is controlled by a power module with a simple, single-knob design which can cover a large range of brightness.

This package includes a 1080p digital camera with built-in recording, and HDMI output for live-viewing. The camera's compact, all-metal design make it sturdy yet unobtrusive. Video can be viewed live on an HDMI monitor or television at a smooth 60fps, and recorded onto MicroSD (not included) at 30fps.

Specifications

Lens
Optical SystemFinite-conjugate
Objctive Magnification0.7X-5X continuous zoom
Objctive Numerical Aperture0.02-0.07
Objective Resolution63 lp/mm @ 0.7X
180 lp/mm @ 5X
Optical CorrectionsSemi-Apochromatic
Camera MountC-Mount (25.4mm)
Integrated Reduction0.4X
Working Distance105mm
Lens Mounting Diameter50mm

Stand
Stand TypeTable stand with pillar
Base Dimensions320mm x 260mm x 16mm
Pillar DimensionsHeight: 280mm
Diameter: 32mm
Focusing-block Focus Range42mm

Illuminator
Illuminator Type96-LED ring light with wired remote
Power Output4.5W
Brightness15000lux @ 100mm
Color Temperature6400K
Power Requirements110-240V, 50-60HZ, auto-switching wide-band

Camera Specifications
Sensor TypeBack-illuminated CMOS
Sensor Optical Format1/2.8"
Active Pixels2M (1920 x 1080)
Pixel Size2.9μm x 2.9μm
Active Sensor Area5.57mm x 3.13mm
Shutterelectronic rolling shutter
Sensitivity1300mV @ 1/30s
Spectral Response380-650nm with IR-cut filter
Capture Resolution and Maximum Framerate30fps @ 1920x1080
120fps @ 1280x720
60fps @ 1280x720
ConnectivityHDMI, mini-USB 2.0
Lens-mountC-mount
Power5VDC 1A

Packing List:

  • One monocular zoom microscope
  • One focusing block
  • One base plate for table-stand
  • One column for table-stand
  • One hex wrench
  • Three screws and washers
  • One dust cover
  • One 96-LED ring-light
  • One power control unit for ring-light
  • One power cord
  • One C-mount camera
  • One mini-USB to USB type-A cable
  • One AC to USB adapter
  • One mini-HDMI to HDMI cable
  • One software mini-CD
