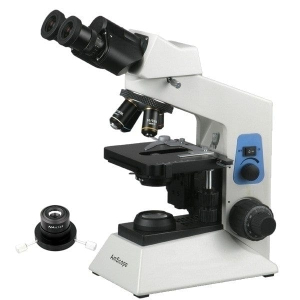

B580-DK B580 Series Simul-Focal Darkfield Biological Binocular Compound Microscope with 20W Halogen and Optional Digital Camera by AmScope
- Overview
- Customers Also Bought
- Your Recently Viewed Items
- Reviews
Overview
This is an upgraded B580 with both brightfield and darkfield lighting. An ideal choice for veterinarians, breeders, and clinics, this instrument has proven reliability and optical quality. It boasts features such as a compensation-free Siedentopf head, smooth stage translation, and a precision focus system with easy tension-adjustment and vertical-lock. The magnification range can be expanded with a large selection of objective and ocular lenses. Additionally, the included darkfield condenser allows for darkfield illumination when working with blood or other fluids, and live cells.
To customize the microscope to your viewing comfort, the eyepiece spacing can be easily adjusted using a precision Siedentopf mechanism. A diopter is available on the both ocular tubes to compensate for asymmetry, and the ocular tubes are angled at 30° to comfortably accommodate a seated position without neck strain. The 23mm photo port is height-adjustable to match focus with the eyepieces, and does not require any switching, allowing all three optical ports to be used simultaneously.
The objective turret provides instant access to 4 magnification levels to easily focus in on minute details from 40X to 1000X. This covers magnifications needed for studying hair follicles, cells, and bacteria. These high-quality lenses are achromatically corrected to improve resolution and color accuracy.
The 2-layer mechanical stage provides smooth and precise movement for examination of specimen slides. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimen slides is intuitive and precise for users at any skill level. Halogen sub-stage lighting provides bright illumination with excellent color rendering. The warm lighting is better suited for prolonged use, causing less eyestrain than LED and fluorescent lighting. The Abbe light condenser has a high 1.25 numerical aperture for oil-immersion, and an iris diaphragm to optimize contrast and depth-of-field. The condenser holder uses rack-and-pinion movement for precise height adjustment.
Darkfield
A dry darkfield condenser is included for darkfield observation using the 40X objective lens or lower. Darkfield observation will provide contrast in otherwise indistinguishable objects by highlighting changes in refractive index. This is particularly useful for observing live cells including blood analysis. With a 0.9 numerical aperture, the condenser works with non-immersion lenses. Two centering screws allow you to properly center the condenser for optimal contrast.
Specifications
Technical drawings with measurements (in mm, binocular model shown)
Optical System | Finite-conjugate |
Mechanical Tube Length | 160mm |
Head | Binocular, 30° incline, 360° rotatable |
Interpupillary Adjustment | 55-75mm Siedentopf compensation-free gemel |
Ocular Diameter | 23mm |
Eyepieces | 10X |
Objective Lenses | DIN standard |
Objective Parfocal Distance | 45mm |
Objective Mounting Thread | RMS 20.32mm |
Objective Turret | quadruple |
Focusing System | Coaxial coarse and fine focus, upper limit-stop, tension control |
Focus Range | 28mm |
Division of Fine Focus | 0.002mm |
Stage Design | Double-layer with caliper |
Stage Dimensions | 140mm x 132mm |
X-Y Translation Range | 76mm x 50mm |
Transmitted Illumination | 20W halogen |
Condenser | NA1.25 Abbe condenser with iris diaphragm, 32mm filter holder NA0.7-0.9 dry darkfield condenser with centering knobs |
Sub-stage Condenser-holder | rack and pinion |
Power | 85-265VAC 50/60Hz wide-band |
Objective Lenses
Magnification | Corrections | NA | Immersion Medium | Cover-glass Thickness |
---|---|---|---|---|
4X | achromatic | 0.10 | — | 0.17mm |
10X | achromatic | 0.25 | — | 0.17mm |
40X | achromatic | 0.65 | — | 0.17mm |
100X | achromatic | 1.25 | oil | 0.17mm |
