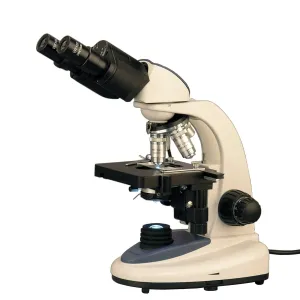

B380C-E2 B380 Series Biological Binocular Compound Microscope 40X-2500X Magnification with LED, Siedentopf and 2MP Digital Eyepiece by AmScope
- Overview
- Customers Also Bought
- Your Recently Viewed Items
- Reviews
Overview
Features
- 40X to 2500X achromatically-corrected magnification for studying a range of specimens including hair follicles, cells, and bacteria. 10X and 25X eyepieces provide 6 unique magnification settings.
- An economical microscope for students and professionals, the B380 packs high-quality optics and refined mechanics into a compact form.
- Professional features include a Siedentopf binocular head for precise adjustments, a 2-layer mechanical stage with low-position controls, and coaxial coarse and fine focus for ergonomics and an efficient workflow.
- Monitor and capture photos and videos with the included 2MP digital eyepiece camera. Professional microscopy software for Windows, Mac, and Linux provide tools for image processing, measuring, and more.
- Includes an AmScope Exclusive – digital camera software designed for middle and high school students that makes capturing and editing photos and videos easy and fun! Windows and Mac
Designed for clinical examinations and teaching demonstrations in the medical field, veterinary offices, laboratories, and colleges, this compound microscope is feature-packed for comfort and ease of use. Coming with a 30° inclined, 360-degree swiveling binocular head with Siedentopf adjustment. It also includes a reversed nosepiece, 3D mechanical stage, and a variable-intensity 1W LED illumination system, all ideal for easily focusing and scanning through your sample.
To customize the microscope to your viewing comfort, the eyepiece spacing can be easily adjusted using a precision Siedentopf mechanism. A diopter is available on the left ocular tube to compensate for asymmetry, and the ocular tubes are angled at 30° to comfortably accommodate a seated position without neck strain. Various eyepieces can be used to increase the overall optical magnification.
The objective turret provides instant access to 4 magnification levels to easily focus in on minute details from 40X to 1000X. Additional 25X eyepieces expand the maximum magnification to 2500X with 6 unique levels. This covers magnifications needed for studying hair follicles, cells, and bacteria. The turret's reversed orientation provides more working room above the stage. These high-quality lenses are achromatically corrected to improve resolution and color accuracy.
The 2-layer mechanical stage provides smooth and precise movement for examination of specimen slides. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimen slides is intuitive and precise for users at any skill level.
The LED sub-stage lighting provides cool, energy-efficient illumination. The light-source is daylight balanced to produce natural colors for imaging. The Abbe light condenser has a high 1.25 numerical aperture for oil-immersion, and an iris diaphragm to optimize contrast and depth-of-field. The condenser holder uses rack-and-pinion movement for precise height adjustment, and has two centering screws to properly align the condenser.
Monitor and capture photos and videos with the included 2MP digital eyepiece camera. The compact, lightweight camera can be used in place of an eyepiece to watch live images, and to record photos or videos on your computer. This ability to view microscopic images on your computer reduces eye-strain, and allows groups of people to view images at the same time. Our professional software for Windows provides a wide assortment of capture and photo-editing functions including color correction, time-lapse capture, image stitching, and a full complement of measuring tools. A lite version of our software is available for Mac and Linux with essential functionality for capturing photos and videos.
Specifications
Optical System | Finite-conjugate |
Tube Length | 160mm |
Head | Binocular, 30° incline, 360° rotatable |
Interpupillary Adjustment | Siedentopf, 48-75mm |
Ocular Diameter | 23mm |
Eyepieces | 10X, 25X |
Objective Lenses | DIN standard |
Objective Parfocal Distance | 45mm |
Objective Mounting Thread | RMS 20.32mm |
Objective Turret | Reversed quadruple |
Focusing System | Coaxial coarse and fine focus, upper limit-stop |
Coarse Focus Range | 30mm |
Fine Focusing Precision | 0.002mm |
Stage Design | Double-layer with caliper |
Stage Dimensions | 140mm x 140mm |
X-Y Translation Range | 75mm x 45mm |
Transmitted Illumination | Variable-intensity 1W LED |
Condenser | NA1.25 Abbe condenser with iris diaphragm |
Sub-stage Condenser-holder | rack and pinion, centerable |
Power | 85-265VAC 50/60Hz wide-band |
Objective Lenses
Magnification | Corrections | NA | Immersion Medium | Cover-glass Thickness |
---|---|---|---|---|
4X | achromatic | 0.10 | — | 0.17mm |
10X | achromatic | 0.25 | — | 0.17mm |
40X | achromatic | 0.65 | — | 0.17mm |
100X | achromatic | 1.25 | oil | 0.17mm |
Camera Specifications | |
Sensor Type | CMOS |
Sensor Optical Format | 1/2.7" |
Active Pixels | 2M (1920 x 1080) |
Pixel Size | 3µm x 3µm |
Active Sensor Area | 5.76mm x 3.24mm |
Shutter | electronic rolling shutter |
Spectral Response | 380-650nm with IR-cut filter |
Capture Resolution and Maximum Framerate | 25fps @ 1920x1080 30fps @ 1280x1024 30fps @ 1280x720 |
Connectivity | USB 2.0 |
Power | 5VDC over USB |
Software
OS Requirements | Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+ | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 4GB RAM | |||||||||||||||
Features |
|
