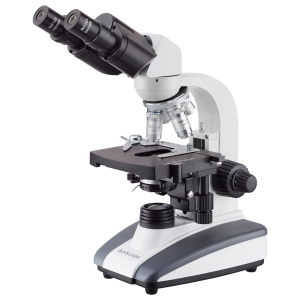

AmScope B360A B360 Series Biological Binocular Compound Microscope 40X-1600X Magnification with Siedentopf

AmScope B360A B360 Series Biological Binocular Compound Microscope 40X-1600X Magnification with Siedentopf
Click to zoom
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
Condition: new
Warranty
Out Of Stock

Overview


Features

  • 40x-1600x Eight wide-field magnification powers
  • Backward nosepiece provides spacious operation room
  • Abbe condenser with Iris diaphragm
  • Tension adjustable coaxial coarse & fine focus
  • Bright LED illumination

This is a binocular LED compound microscope designed for clinical examination and teaching demonstration in medical field, laboratories and colleges. It comes with compensation-free binocular head, mechanical stage and LED illumination system. It offers eight level magnifications, 40X, 64X, 100X, 160X, 400X, 640X, 1000X & 1600X. It is an ideal instrument for biological, bacteriological and pharmaceutical researches.

Features:

  • Fully Coated Optical System with High Resolution
  • 40X-64X-100X-160X-400X-640X-1000X-1600X Magnifications
  • 360 Degree Rotatable 30 Degree Inclined Binocular Head
  • Oversized Double Layer Mechanical Stage with 3-Dimensional Movement
  • Coaxial Coarse & Fine Focusing with with Tension Control
  • Abbe Condenser with Iris Diaphragm & Filters
  • Built-in Illumination System with Adjustable Brightness
  • Manufactured under ISO 9002 Standards
  • Excellent FIVE (5) YEAR Factory Warranty

Specifications:

  • Nosepiece: quadruple
  • Head: 30 degree inclined compensation-free binocular
  • Interpupillary Distance: 2-3/16" - 3-0" (55-75mm)
  • Eyepieces: WF10X & WF16X
  • Achromatic Objectives: 4X, 10X, 40X (spring), 100X (spring,oil)
  • Stage Dimensions: 4-3/4" x 4-11/32"(120x110mm)
  • Stage Traveling Range: 2-3/4"x1-3/16" (70x30mm)
  • Coarse Focusing Range: 0-7/8" (22mm)
  • Division of Fine Focusing: 0.0000787" (0.002mm)
  • Abbe Condenser: NA=1.25 with iris diaphragm & filter
  • Condenser Focusing: rack-and-pinion
  • Illumination: variable-intensity LED

Packing List:

  • One Binocular Head
  • One Microscope Body
  • Four Objectives: 4X, 10X, 40X and 100X
  • Two Pairs of Widefield Eyepieces: 10X and 16X
  • Immersion Oil
  • Color Filter
  • User's Manual Download
