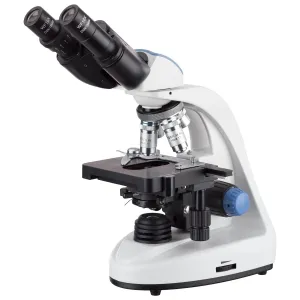

AmScope B300B-E3 B300 Series Advanced Student Binocular Compound Microscope 40X-2000X Magnification with Siedentopf and 3MP Digital Eyepiece Camera

00 Reviews Write review
AmScope B300B-E3 B300 Series Advanced Student Binocular Compound Microscope 40X-2000X Magnification with Siedentopf and 3MP Digital Eyepiece Camera
Click to zoom
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
Condition: new
Warranty
Out Of Stock

Overview


Features

  • 40X to 2000X achromatically-corrected magnification for studying a range of specimens including hair follicles, cells, and bacteria. 10X and 20X eyepieces provide 8 unique magnification settings.
  • A sleek, compact compound microscope for students and professionals. This microscope is perfect for classroom workstations or labs with limited space.
  • Includes a Siedentopf binocular head for precise adjustments, a 2-layer mechanical stage with low-position controls, and a centerable condenser for optimal light alignment.
  • Monitor and capture photos and videos with the included 3MP digital eyepiece camera. Professional microscopy software for Windows, Mac, and Linux provide tools for image processing, measuring, and more.
  • Includes an AmScope Exclusive – digital camera software designed for middle and high school students that makes capturing and editing photos and videos easy and fun! Windows and Mac

The B300 binocular compound microscope has a sleek aesthetic appeal with modern features. With its small footprint, this microscope is perfect for classrooms and small workspaces. The Siedentopf head, reversed turret, coaxial coarse and fine focus, and a 2-layer mechanical stage make this model appropriate for all levels of users.

To customize the microscope to your viewing comfort, the eyepiece spacing can be easily adjusted using a precision Siedentopf mechanism. A diopter is available on the left ocular tube to compensate for asymmetry, and the ocular tubes are angled at 30° to comfortably accommodate a seated position without neck strain. The head can also be rotated 360° to accommodate multiple users. Various eyepieces can be used to increase the overall optical magnification.

The objective turret provides instant access to 4 magnification levels to easily focus in on minute details from 40X to 1000X. Additional 20X eyepieces expand the maximum magnification to 2000X with 8 unique levels. This covers magnifications needed for studying hair follicles, cells, and bacteria. The turret's reversed orientation provides more working room above the stage. These high-quality lenses are achromatically corrected to improve resolution and color accuracy.

The 2-layer mechanical stage provides smooth and precise movement for examination of specimen slides. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimen slides is intuitive and precise for users at any skill level.

The LED sub-stage lighting provides cool, energy-efficient illumination. The light-source is daylight balanced to produce natural colors for imaging. The Abbe light condenser has a high 1.25 numerical aperture for oil-immersion, and an iris diaphragm to optimize contrast and depth-of-field. The condenser holder uses rack-and-pinion height adjustment, and has centering screws for optimal alignment.

Monitor and capture photos and videos with the included 3MP digital eyepiece camera. The compact, lightweight camera can be used in place of an eyepiece to watch live images, and to record photos or videos on your computer. This ability to view microscopic images on your computer reduces eye-strain, and allows groups of people to view images at the same time. Our professional software for Windows provides a wide assortment of capture and photo-editing functions including color correction, time-lapse capture, image stitching, and a full complement of measuring tools. A lite version of our software is available for Mac and Linux with essential functionality for capturing photos and videos.

Specifications

Optical SystemFinite-conjugate
Tube Length160mm
HeadBinocular, 30° incline, 360° rotatable
Interpupillary AdjustmentSiedentopf, 48-75mm
Ocular Diameter23mm
Eyepieces10X, 20X
Objective LensesDIN standard
Objective Parfocal Distance45mm
Objective Mounting ThreadRMS 20.32mm
Objective TurretQuadruple, reversed
Focusing SystemCoaxial coarse and fine focus, upper limit-stop
Stage DesignDouble-layer with caliper
Stage Dimensions126mm x 110mm
X-Y Translation Range70mm x 30mm
Transmitted IlluminationVariable-intensity 1W LED
CondenserNA1.25 Abbe condenser with iris diaphragm
Sub-stage Condenser-holderrack and pinion, centerable
Power100-240VAC 50/60Hz wide-band

Objective Lenses

MagnificationCorrectionsNAImmersion MediumCover-glass Thickness
4Xachromatic0.100.17mm
10Xachromatic0.250.17mm
40Xachromatic0.650.17mm
100Xachromatic1.25oil0.17mm

Camera Specifications
Sensor TypeCMOS
Sensor Optical Format1/2.7"
Active Pixels3M (2048 x 1536)
Pixel Size2.2µm x 2.2µm
Active Sensor Area4.51mm x 3.38mm
Shutterelectronic rolling shutter
Spectral Response380-650nm with IR-cut filter
Capture Resolution and Maximum Framerate3fps @ 2048x1536
5fps @ 1600x1200
7.5fps @ 1280x1024
ConnectivityUSB 2.0
Power5VDC over USB

Software

OS RequirementsWindows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
Hardware RequirementsIntel Core2 2.8GHz or comparable processor, 4GB RAM
Features
Windows Version
Live video preview
Captures still images and video
Time-lapse capture
Exposure and white-balance controls
Image processing
Measurement tools, including lines, arcs, polygons
Segmentation and counting tools
Image-stitching, extended depth-of-field, HDR
Mac/Linux Versions
Live video preview
Captures still images and video
Exposure control
Color adjustment
Measurement tools, including lines, arcs, polygons

Packing List:

  • One binocular microscope
  • Four objective lenses: 4X, 10X, 40X and 100X
  • One pair 10X eyepieces
  • One pair 20X eyepieces
  • One dust cover
  • One sample immersion oil
  • One digital eyepiece camera
  • Two sizing adapters
  • One mini USB to USB type A cable
  • One software CD
