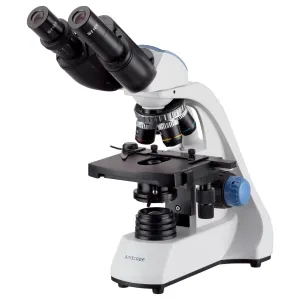

B250-E B250 Series Compact Student and Professional LED Siedentopf Binocular Compound Microscope with 3D Mechanical Stage and Optional Digital Camera by AmScope
- Overview
- Customers Also Bought
- Your Recently Viewed Items
- Reviews
Overview
The B250 binocular compound microscope is small, but it packs a big punch. The sleek, compact design uses a minimal footprint while providing high-efficiency features like a Siedentopf head, coaxial coarse and fine focus, and a 2-layer mechanical stage. The reversed lens turret maximizes the stage's working space. The microscope is perfect for classroom workstations or labs with limited space.
To customize the microscope to your viewing comfort, the eyepiece spacing can be easily adjusted using a precision Siedentopf mechanism. A diopter is available on the left ocular tube to compensate for asymmetry, and the ocular tubes are angled at 30° to comfortably accommodate a seated position without neck strain. The head can also be rotated 360° to accommodate multiple users. Various eyepieces can be used to increase the overall optical magnification.
The objective turret provides instant access to 4 magnification levels to easily focus in on minute details from 40X to 1000X. This covers magnifications needed for studying hair follicles, cells, and bacteria. The turret's reversed orientation provides more working room above the stage. This model uses compact-format lenses to reduce the overall profile while maintaining achromatic corrections to improve resolution and color accuracy.
The 2-layer mechanical stage provides smooth and precise movement for examination of specimen slides. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimen slides is intuitive and precise for users at any skill level.
The LED sub-stage lighting provides cool, energy-efficient illumination. The light-source is daylight balanced to produce natural colors for imaging. The Abbe light condenser uses a simple spiral-control for height adjustment, and an iris diaphragm to optimize contrast and depth-of-field.
Specifications
Optical System | Finite-conjugate |
Mechanical Tube Length | 160mm |
Head | Binocular, 30° incline, 360° rotatable |
Interpupillary Adjustment | Siedentopf, 48-75mm |
Ocular Diameter | 23mm |
Eyepieces | 10X |
Objective Lenses | Short-barrel |
Objective Mounting Thread | RMS 20.32mm |
Objective Turret | quadruple, reversed |
Focusing System | Coaxial coarse and fine focus |
Focus Range | 30mm |
Division of Fine Focus | 0.002mm |
Stage Design | Double-layer with caliper |
Stage Dimensions | 115mm x 109mm |
X-Y Translation Range | 55mm x 18mm |
Transmitted Illumination | Variable-intensity LED |
Condenser | NA1.25 Abbe condenser with iris diaphragm |
Sub-stage Condenser-holder | spiral adjustment |
Power | 100-240VAC 50/60Hz wide-band |
Objective Lenses
Magnification | Corrections | NA | Immersion Medium | Cover-glass Thickness |
---|---|---|---|---|
4X | achromatic | 0.10 | — | 0.17mm |
10X | achromatic | 0.25 | — | 0.17mm |
40X | achromatic | 0.65 | — | 0.17mm |
100X | achromatic | 1.25 | oil | 0.17mm |
