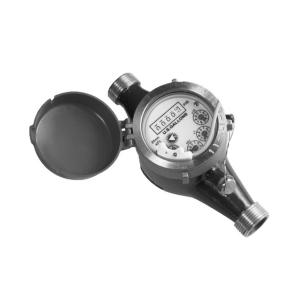

AccentPDIR ACS-062-R ACS Series 5/8"x1/2" Multi-Jet Dry Type Cold Water Meter with Contact Output

ACS Series water meters use the widely accepted multi-jet principle, as a gear train drives the register totalizer dials. For pulse output meters, a reed switch sensor is attached to the outside of the lens and detects a magnet arm that has replaced one of the dial pointers. The reed switch output is a dry contact closure and does not require power.

Pulse Output

Reed switch sensors respond to a magnet that rotates on the face of the meter under the lens. The sensor turns on and off once each time the magnet passes under it. Sensors are designed for electronic control loads, and should not be used to switch power loads or line voltages. See maximum current and voltage ratings, under specifications.

Accuracy Curve

For more information, please see Data Sheet
