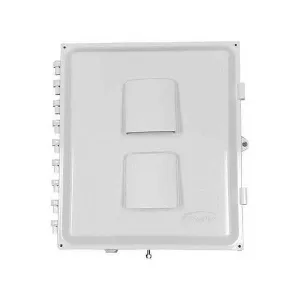

AccelTex ATS-00240 14x12x6 Heated & Cooled PoE Enclosure for 4 Element N-Style External Antenna

AccelTex ATS-00240 14x12x6 Heated & Cooled PoE Enclosure for 4 Element N-Style External Antenna
Click to zoom
  • Specification
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
  • Brand:AccelTex
  • Part #:ATS-00240
  • Model #:ATS-14126P-S-L-4N-CG-POE-HC
Condition: new
Warranty

Overview


The AccelTex Solutions Heated & Cooled PoE enclosure allows an access point to be installed in an outdoor or other temperature-limiting environment. The heater, fan and AP are all powered by a single PoE cable run from the network switch. The enclosure ships ready for an AP and external antenna installation. This version is for a 4-Element N-Style External Antenna.

The enclosure system components include:

  • 14x12x6 polycarbonate enclosure with solid door and latch lock
  • Ethernet surge suppressor for 802.3at/af/bt
  • 60W PoE Injector and Line Cord (UPOE & 802.3at/af Type 3)
  • 12VDC 15W Heater and 3" Fan
  • DC Adjustable Thermostat (Fahrenheit)
  • Ethernet Cable (For AP. Customer provides Ethernet to enclosure suppressor)
  • Ethernet Surge Suppressor pre-wired to ground
  • IP68 Rated Cord Grip
  • Blank backplate provides 10"x10.5" mounting area (Recommend 1/2" self-tap screws)
  • Vents
  • 10" DIN rail
  • Dual-Layered Fan Filter
  • 7-Port Enclosure Termination Ground Bar
  • Ground Lug Assembly with 1/4" Ring Terminal Connection Point
  • N-Style Bulkhead Jack to Plug Lightning Arrestors (4)
  • N-Style Jack to N-Style Plug Cable Assemblies (4)
  • Right-Angle N-Style Jack to N-Style Plug Adapters (4)

For more information, please see Specification Sheet
