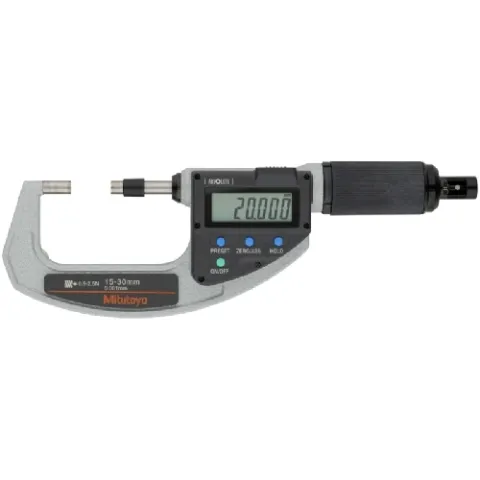

Mitutoyo 227-203-20 Series 227 Absolute Digimatic Micrometer, with Adjustable Measuring Force, 15 - 30 mm
Click to zoom
  • Brand:Mitutoyo
  • Part #:227-203-20
  • Model #:Series 227
Factory Warranty
Warranty
Condition
Condition: new
  • Regular Price: $1,130.00
Safe Checkout
Fully secured
Money back Guaranty
100% satisfaction

Overview

Features:

  • Digimatic micrometer equipped with a constant/low measuring force mechanism. The measurement-value hold function automatically retains the data at a specified measuring force. (Pressing with a larger force than the specified measuring force does not affect the measurement result).
  • Suitable for measuring flexible workpieces such as electric wire, paper, and rubber.
  • Non-rotating spindle reduces workpiece deformation.
  • Measuring faces: Carbide tipped.
  • With SPC data output.

Note: Measurement posture: horizontal orientation only (Recommended spindle inclination: within ±3°)

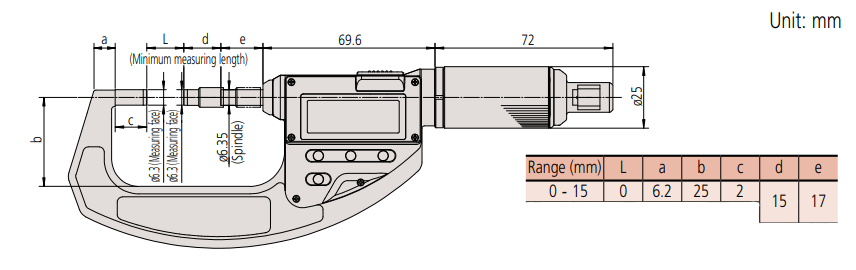

Dimension diagram
