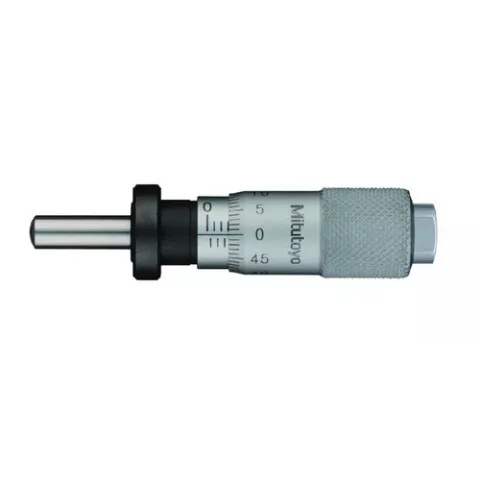

Mitutoyo 148-802 Series 148 Micrometer Head, Small Standard Type, 0-13 mm Range, Spherical Spindle End, with Clamp Nut

The Mitutoyo smaller-sized standard micrometer head is shorter in length and range with a smaller diameter for easier placement in machines and fixtures.

The Mitutoyo standard micrometer head comes in a smaller size to fit tighter spaces while providing accurate placement and measurements. The spindle is constructed of hardened tool steel, and the measuring face is precision lapped for better accuracy.

Features:

• Smaller size mic head has a 13 mm thimble diameter
• Spindle range is 13 mm / .5"
• Mounting stem diameter is 9.5 mm / .375"
• Spindle diameter is 5 mm / .197"
• Spindle faces have lapped surfaces and are constructed of ultra-hard SKS3 steel and are available in spherical or flat types
• Thimble is hard-chrome plated with laser-etched scales for easy-to-read measurements
• Spindle screw threads are precision machined for incredibly precise movements
