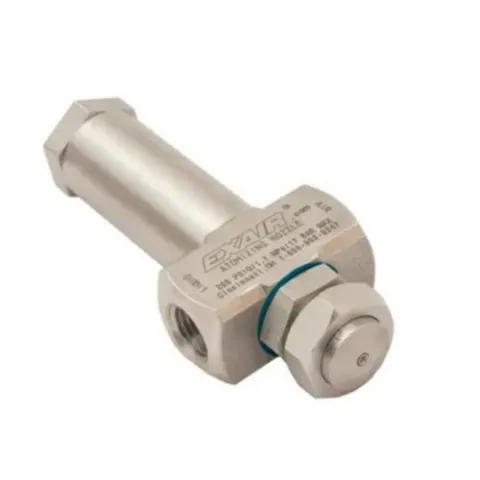

Exair SR2020SS No Drip Siphon Fed Round Atomizing Nozzle, 1.9 GPH / 7.2 LPH Max, 1/4 FNPT

EXAIR's 1/4 FNPT no drip siphon fed round pattern nozzles preserve precious liquids and protect product finished from drips. They are a good choice where no liquid pressure is available and a thin coating is needed at a specific area. Flow rate is adjustable via the adjusting valve. Siphon nozzles work best with a suction height of 36" (914mm) or less. Since these nozzles are siphon fed, the compressed airflow draws the liquid in and mixes it internally. Liquid flow is dependent both on the gravity or suction height and the airflow. Siphon fed round pattern nozzles provide the most liquid flow of any siphon fed nozzle. Made from 303SS for corrosion resistance.

Applications

• Washing
• Rinsing
• Coating
• Cooling
• Quenching
• Wetting (moistening)
• Humidification
• Dust Control

Advantages

• Fully adjustable
• Maximizes liquid dispersion
• Minimizes liquid consumption
• All stainless steel construction
• Compact
• Versatile
• Interchangeable liquid and air caps
• Minimizes air consumption
• Fine atomization

Materials

Type 303 stainless steel, which can resist high temperatures and corrosive environments. Maximum operating temperature of 800°F (426°C).

For more information, please see Catalog
