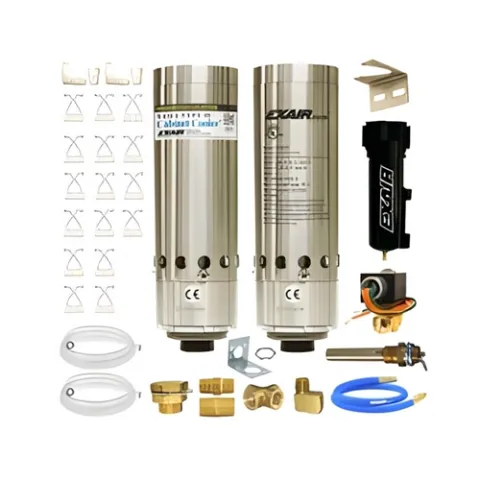

Exair HZ4880-24VDC NEMA 4 5,600 Btu/hr HazLoc Cabinet Cooler with 24VDC Thermostat, Aluminum, UL Classified

Thermostat controlled Hazardous Location NEMA 4 (IP66) Cabinet Cooler Systems are a low cost and reliable way to cool purged electric control panels found in classified environments. EXAIR's HazLoc Cabinet Cooler Systems are meant for use in conjunction with a purged and pressurized control system. All Cabinet Coolers are UL Classified and CE compliant.

Features:

• Tested by UL and meet the stringent UL requirements for Class I Div 1, Groups A, B, C and D; Class II Div 1 Groups E, F and G; and Class III
• Hazardous Location NEMA 4 (IP66) Cabinet Coolers are available in cooling capacities from 1,000 Btu/Hr. to 5,600 Btu/Hr
• Can be installed in minutes through a standard electrical knockout
• NEMA 4 thermostat control systems save air by activating the cooler only when internal temperatures approach critical levels
• Thermostat controlled cooler systems are the best option when experiencing fluctuating heat loads caused by environment or seasonal changes
• Standard thermostat control systems include an adjustable thermostat factory set at 95°F (35°C)
• Incorporate a low pressure relief valve which closes and seals when the cooler is not operating to maintain the integrity of a NEMA 4 enclosure
• Each of these systems include a water-dirt filter separator to prevent water condensate and dirt from entering your enclosure and a cold air distribution kit used to direct the air for circulation or on to hot spots

Applications

• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Laser housings
• Electronic scales

Advantages

• Rated for Div I Hazardous Locations
• UL Classified
• Available in 8 different cooling capacities
• No moving parts - maintenance free
• Thermostat control reduces operating cost
• Large cooling capacities up to 5,600 Btu/hr. (1,641 Watts)
• 5 Year warranty
