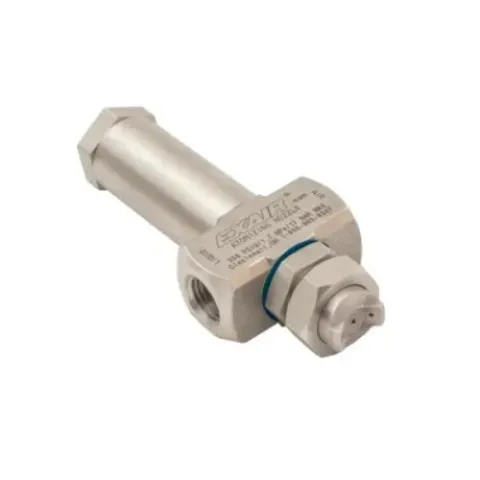

1/4 FNPT no drip external mix narrow angle flat fan pattern nozzles feature their ability to positively stop liquid flow when the compressed air is shut off helps conserve expensive liquids and protects the product finish from drips. They are great where a high volume of liquid is needed over a concentrated area. Since they are external mix, airflow and liquid flow can be controlled independently. External mix narrow angle flat fan pattern nozzles are the best choice where thicker liquids for a heavy coating are needed over a narrow band, such as a paint line. Made from 303SS for corrosion resistance. For pressure fed applications with independent air and liquid control.
Applications
- Washing
- Rinsing
- Coating
- Cooling
- Quenching
- Wetting (moistening)
- Humidification
- Dust Control
Advantages
- Fully adjustable
- Maximizes liquid dispersion
- Minimizes liquid consumption
- All stainless steel construction
- Compact
- Versatile
- Interchangeable liquid and air caps
- Minimizes air consumption
- Fine atomization
For more information, please see Catalog
