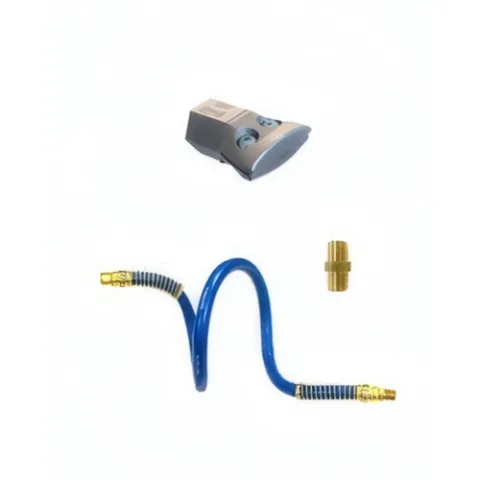

EXAIR's 1" Flat Super Air Nozzle is a highly efficient, unique flat air nozzle. The patented design uses a special shim to maintain the critical position of the component parts, resulting in a wide, forceful stream of high velocity, laminar airflow.
Features:
- Constructed from Type 316 stainless steel for superior durability, heat resistance, and corrosion resistance.
- Includes EXAIR's Flexible Stay Set Hose for applications where frequent repositioning is required.
- The Stay Set Hose has "memory" and will not creep or bend, ensuring the airflow remains targeted.
- Force and flow may be easily increased or decreased by installing a different shim.
- Delivers a forceful stream of air with minimal air consumption and low noise levels.
Applications
- Part cleaning
- Chip removal
- Liquid blowoff
- Part cooling
- Material conveying
- Part ejection
- Fiber conveying
- Air assist
Advantages
- Reduced compressed air cost
- 10 dBA average noise reduction
- Conserve compressed air
- Improved blowoff performance
- Compact
- Improved safety
- Meets OSHA noise level requirements
- Meets OSHA pressure requirements
- Improved production
