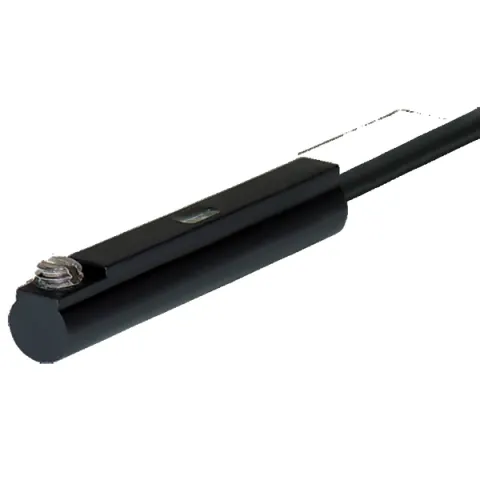

Canfield Connector 9C10-000-031 9C Series Proximity Switch, 9' Cable, Electronic for Reed Magnet, Green LED & Sourcing, 5-28 VDC

The 9C Series is a compact, universal, magnetically operated proximity switch commonly used on aluminum extruded profile type linear actuators equipped with magnetic pistons. The switches are electronic style and made to fit into a 4mm key hole type slot. Position fixing is accomplished by means of a screw that is supplied in the switch body. The on board indicator light shows instant switch diagnostics to minimize downtime and facilitate installation and can be seen from wide angles. Coming with the standard 9 ft. PVC wired, the switch can handle AC or DC current in several configurations. The 9C is constructed of engineered polymers and designed to meet IP 67 / NEMA 6 environmental specifications.

Groove Details: Fits: DE-STA-CO, Robohand, SMC, Bimba, Compact Air, Fabco.

Configuration: 9' PVC Cable, Electronic for Reed Magnet, Green LED & Sourcing, 5-28 VDC

For more information, please see Data Sheet
