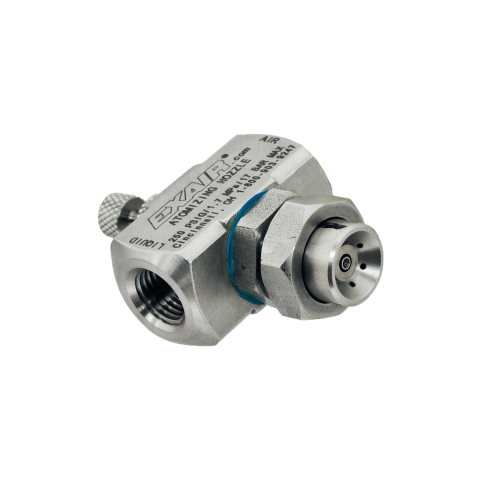

Exair ER1030SS Atomizing Spray Nozzle, External Mix, Round Pattern, 1/4 NPT, 14.0 GPH max flow

EXAIR's 1/4 FNPT external mix round pattern nozzles are great where a high volume of liquid is needed over a specific area or general area, but not in a flat pattern. Applications include spot treatments of parts, covering irregularly shaped objects and rinsing. They are also an excellent choice for controlling heavy dust and particulates. Since they are external mix, airflow and liquid flow can be controlled independently. For pressure fed applications with independent air and liquid control.

Applications:

• Washing
• Rinsing
• Coating
• Cooling
• Quenching
• Wetting (moistening)
• Humidification
• Dust Control

Advantages:

• Fully adjustable
• Maximizes liquid dispersion
• Minimizes liquid consumption
• All stainless steel construction
• Compact
• Versatile
• Interchangeable liquid and air caps
• Minimizes air consumption
• Fine atomization

Atomizing Nozzle Materials:

• Type 303 Stainless Steel - All of EXAIR's Atomizing Nozzles are constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. They are designed for environments with a maximum operating temperature of 800°F (426°C).
