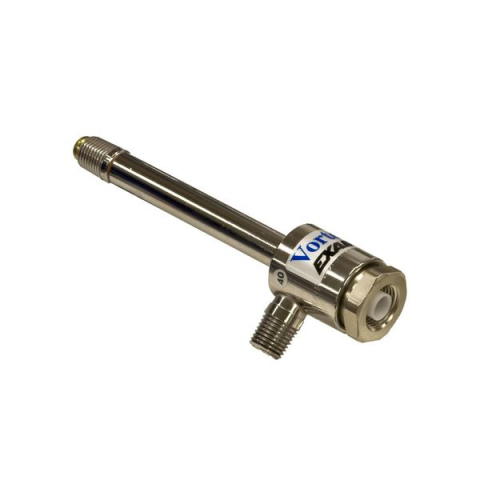

Exair 3230 Vortex Tube (30 SCFM)
- Specification
- Overview
- Customers Also Bought
- Your Recently Viewed Items
- Reviews
Overview
EXAIR's Vortex Tubes offer a low cost, reliable, maintenance free solution to a variety of industrial spot cooling problems. Temperatures, flows and cooling power can all be adjusted to produce temperatures from -50°F to +260°F (-46° to +127°C). Using an ordinary supply of compressed air as a power source, vortex tubes create two streams of air, one hot and one cold, with no moving parts. They are constructed of wear resistant stainless steel, which is ideal for corrosive and hygienic environments. Temperatures, flows and cooling power can all be adjusted to produce temperatures from -50°F to +260°F (-46°C to +127°C).
Applications
- Cooling electronic controls
- Cooling machining operations
- Cooling CCTV cameras
- Setting hot melts
- Cooling soldered parts
- Cooling gas samples
- Electronic component cooling
- Cooling heat seals
- Cooling environmental chambers
Advantages
- No moving parts
- No electricity or chemicals
- Small, lightweight
- Low cost
- Maintenance free
- Instant cold air
- Durable - stainless steel
- Adjustable temperature
- Interchangeable generators
Vortex Tube Dimensions
How Vortex Tubes Work
Compressed air, normally 80-100 PSIG (5.5 - 6.9 BAR), is ejected tangentially through a generator into the vortex spin chamber. At up to 1,000,000 RPM, this air stream revolves toward the hot end where some escapes through the control valve. The remaining air, still spinning, is forced back through the center of this outer vortex. The inner stream gives off kinetic energy in the form of heat to the outer stream and exits the vortex tube as cold air. The outer stream exits the opposite end as hot air.
