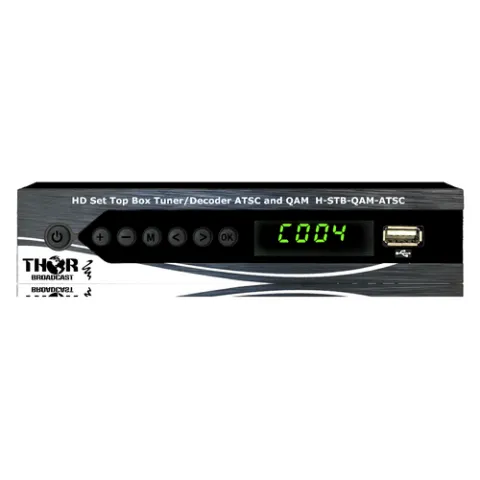

Thor Broadcast H-STB-QAM/ATSC Universal Dual Modulation Standard Integrated Receiver Decoder with PVR Recorder

The Thor Broadcast H-STB-QAM-ATSC is a unique universal dual-standard Set Top Box - IRD Integrated Receiver Decoder and PVR Recorder - Digital TV Converter

• CATV RF Off-Air Antenna digital ATSC Signal Tuner Decoder
• CABLE TV Digital DVB-C Annex B QAM 64/256 Tuner decoder

The decoder Set Top Box has 4 Major Outputs:

• HDMI output up to 1080p60
• YPbPr component Audio Video Output up to 1080i (RCA connectors)
• CVBS Analog Baseband Video and Audio output (RCA connectors)
• CATV RF Analog Output NTSC/PAL channel 3 and 4 (Application - Digital RF to Analog NTSC/PAL converter)

Popular applications to use this device for:

• Decoding ATSC Off Air signal from an Antenna
  • ATSC to HDMI
  • ATSC to YPbPr
  • ATSC to CVBS Digital to Analog conversion
  • ATSC to ANALOG RF CH 3/4 as a Digital to Analog converter
• Decoding Clear QAM CABLE TV RF
  • QAM to HDMI
  • QAM to YPbPr
  • QAM to CVBS - Digital to Analog conversion
  • QAM to ANALOG RF CH 3/4 as a Digital to Analog converter

The unit also comes equipped with a built-in PVR Recorder using an external USB storage source like a USB stick.

Features:

• Auto & Manual search, 4000channels for TV & Radio
• ATSC and DVB-C Annex B QAM 64/256
• EPG for enhanced program information, favorite channel and station list
• USB2.0 PVR for record&playback TV channels
• 16:9 full screen, 4:3 letterbox & fullscreen
• Support Teletext and DVB subtitle
• Timer On/Offsetting
• Parental guidance lock
• Full function remote control
• Low power mode
• HDMI output up to 1080p/60
• YPbPr video output up to 1080i/60
• CVBS baseband video ouput up to 480i
• ANALOG RF OUTPUT CH 3 or 4 selectable NTSC/PAL
