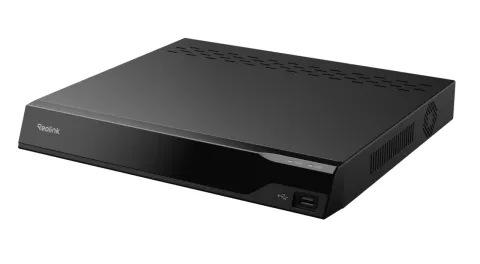

Reolink RP-PN16 Professional Series 16-Channel PoE Network Video Recorder Built-In 4TB HDD Supports up to 2*16TB HDD Heat Mapping Technology

Features:

• Built-in 4TB HDD
• Expandable Storage up to 32TB
• Supports up to 16MP
• Heat Mapping Technology
• Smart Event Detection
• AI Video Search

16MP Ultra HD Footage

Supports up to 16MP resolution from connected cameras, capturing ultra-clear footage in vivid color or sharp black and white - day or night. Every detail stays in sharp focus, ensuring enhanced clarity for critical surveillance needs.

All-in-One Control & Storage System

A centralized solution for video storage and alarm management across all Reolink cameras - wired, wireless, PoE, and doorbells (excluding 4G models). Equipped with 16 PoE ports and expandable to 24 channels, the system supports up to 16 PoE/Wi-Fi cameras plus 8 battery-powered Wi-Fi cameras, or up to 24 battery-powered Wi-Fi cameras in total. This flexible setup allows you to build a customized surveillance system tailored to your security needs.

Massive Enterprise-Grade Storage Capacity

With a pre-installed 4TB HDD and expandable storage up to 32TB (2x16TB SATA), the NVR is ideal for large-scale surveillance deployments, ensuring reliable data archiving and quick access to historical video records.

24/7 Continuous Recording

Experience the peace of mind that comes with 24/7 local recording. The NVR captures and stores footage continuously, ensuring no moment is missed and enabling instant playback whenever you need it.

AI Video Search

Quickly locate targets in local recordings by entering descriptive phrases like "white van" or "person wearing a hat" using a virtual or physical keyboard. For faster searches without typing, use the structured click-to select panel - choose attributes like Top: T shirt and Color: Red to auto-generate search terms, then simply click Search. AI Video Search significantly shortens investigation time, enhancing response speed and decision-making efficiency. All searches are performed locally, ensuring data privacy with no additional costs.

Heat Map

The heat map function visually displays foot traffic patterns by analyzing movement and dwell time within a specific area. Commonly used in high-traffic environments like shopping malls, supermarkets, and museums, it generates a color-coded map that highlights where people gather and how long they stay - offering clear, intuitive insights for space utilization and security optimization.

Multiple Access Methods

Access the NVR locally via a connected monitor or remotely through the Reolink app and client software. Enjoy live viewing and playback anytime, anywhere - whether you're on-site or on the go

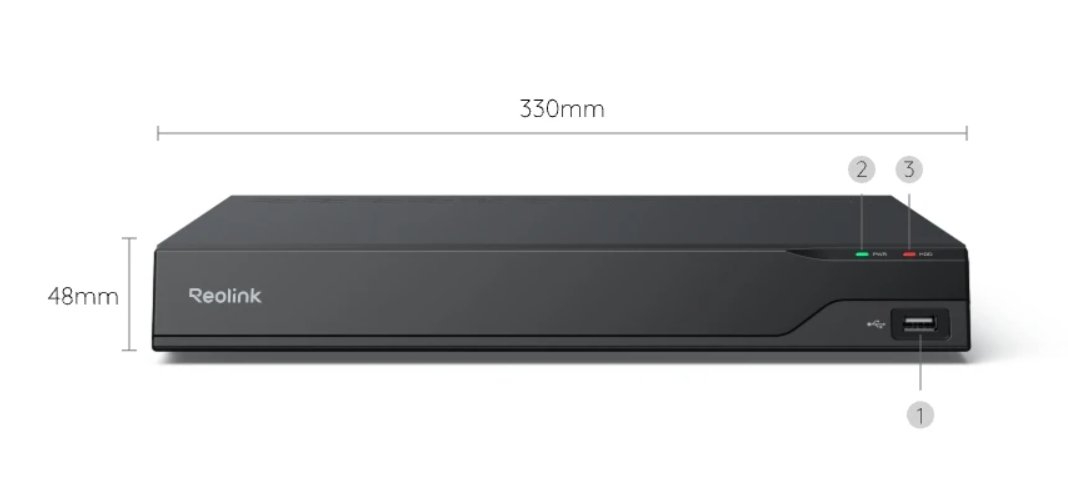

1. USB Port
2. PWR LED
3. HDD LED

Package includes:

• RP-PN16
• Operational Instruction
• NVR Power Adapter
• HDMI Cable
• USB Mouse
• 1m Network Cable

For more information, please see Data Sheet.
