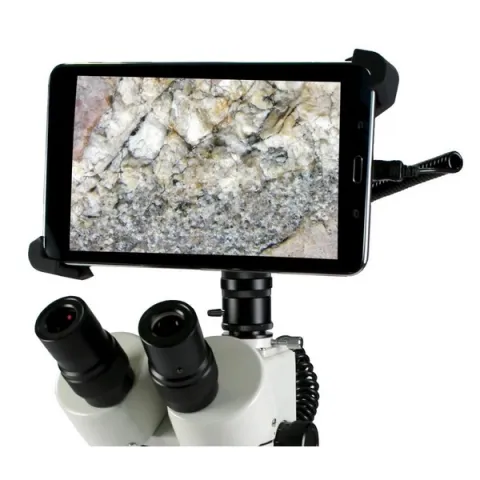

National Optical D-Moticam BTX5-8 MOTICAM Series 8" Detachable Tablet

Introducing National Optical's detachable 8" Android based tablet system for trinocular microscopes. (Please note: C-mount adapter required.)

Now supplied with a Moticam X5, images can be transmitted to attached bracket tablet or iOS and Android devices (up to 5 each). Use it to share live images with colleagues using WiFi enabled devices or laptops. Connect it to your office network via the RJ45 port and share your images with all connected devices. Tablet includes preloaded Motic app.

Viewing Devices

• iOS: Tablet or phone devices with free downloadable app, MotiConnect (at the App Store)
• Android: Tablet or phone devices with free downloadable app, MotiConnect (at the Google Play Store)
• Web Browser: Universal viewer with almost any HTML5 supported Web browser (via camera IP address)
• Wireless Computer: WiFI enabled PC or laptop with Motic Images Plus software

Tablet

• 8" LCD Android tablet with 1280x800 screen resolution
• Connection: WiFi; micro SD card
• Android operating system
• WiFi: WiFi output (802.1 ab/g/n)
• Preloaded optimized MotiConnect app
• 3.7V/3500mA rechargeable battery
• Input*: AC100-240V. 50-60HZ
• Output: DC5V 2A (*Supports USB charging)
• FCC CE

Camera

• 1/3" CMOS
• 4.0MP Capture resolution
• 1920x1080 / 1280x720 Resolution (RJ45 or WiFi)
• 5V (External power supply)
• 2.4 and 5Ghz WiFi - Ethernet (RJ45)

Required Specifications

• Network connection provided through RJ45
• Android or iOS ready device
• WiFi Adapter (PC and Mac only)
• This camera system is designed specifically for Swift, National , and Motic C-Mounts adapters and microscopes. No support is provided for third party adapters or microscopes.
