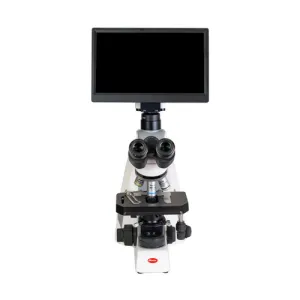

Motic 1100403300223 Panthera C2 Trinocular Microscope (50:50 CCIS Iris Diaphragm Focusing Stroke 25mm) + BMH4000X (Full HD Camera 4k 8MP) Bundle

This digital camera bundle comes with:

• Panthera C2 Trinocular
• Moticam BMH4000X
• Compatible C-mount adapter

If it is about stained sections with cover glass protection, about native smears, fine needle biopsies, blood smears which wanted to be treated with or without cover glass: Panthera C2 with its selection of specified optics is your solution. The new Ultra Contrast (UC) objectives with additional glass elements to reach a 22mm Field of View, working perfectly together with neutral eyepieces (thanks to CCIS© a fully corrected intermediate image for digital access is granted) guarantee best performance in terms of color fidelity and contrast. Microscope hardware, illumination, handling: Simply convincing.

Panthera C2 is a new world-class level cased in a revolutionary technical future-orientated solution, now accessible for life sciences. Stunning Ultra Contrast Optics for best insights, convincing performance of the dual-slide holder for one-hand operation, and intelligent light management with an LED "Feedback indicator": a setup ready to smoothen your daily workflow.

The Panthera C2 is prepared for Phase contrast with slider or turret condenser, Polarization contrast, and Darkfield. It is even possible to integrate a ready-to-go LED Fluorescence module, allowing to apply this advanced method without the multiple problems associated with mercury bulb usage.

Functionality is always related to the sample

Bright Field is the standard, Phase Contrast, Pol Contrast, objectives with/without cover glass correction, optional LED Fluorescence modules with variable filter combinations: Within Panthera C2 module kit everything is possible for your lab, for your application. The microscope hardware suits to almost any physics of the user, no need to talk about interpupillary distance, viewing angle or seating position.

New US optics for new insights

No doubt. The new Plan UC Achromatic objectives, from 2X to 100X magnification range, show significantly improved image contrast. For your individual application: The new 100X/0.8 "Dry objective" is especially favorable in environments where the time-consuming immersion procedure may be considered too complicated. Test it, you are easily convinced. A Field of View of 22mm indicates one more step closer to the High-End level of overview: Your horizon will be enlarged.

Flexibility in illumination

The Panthera C2 offers flexibility in light sources. A 30W Halogen bulb can be replaced by a 3W LED of different color temperatures. A Full-Koehler setup for transmitted light is self-evident.

This is the target: Seamless integration into your workflow

For maximum use of accessories, the Panthera C2 is deeply integrated into Motic's Upright microscope system. The universal turret condenser with all Phase rings and a Darkfield stop, the combination of Polarizer/Analyzer for birefringent samples, LED Fluorescence modules for Epi-Fluorescence: design your workplace according to your demands.

Moticam BMH4000X Full HD Camera:

The Moticam BMH4000X is a camera that was designed for ease of use and the ability to output fast live images at 4k(3840x2160) pixels in full HD. Unlike other cameras, the Moticam BMH4000X can be connected to a computer or through HDMI. Simply plug the camera through the HDMI port and display images with the use of the onboard software and a USB mouse through the built-in 11.6" LCD screen, or connect your camera through USB to a Windows, Mac or Linux computer. By having an integrated SD card slot, not only does saving images not require a computer, but it also allows flexibility to save portable data.

The Moticam 4000X-BMH is a C-Mount multitasking microscopy camera, that delivers an impressive 1080p Full HD live image with maximum color fidelity on an integrated LCD screen. It does not require a computer for standard operation, as it comes with an on-board software that will allow you to use it through its 11.6" Full HD integrated screen, with a mouse connected to the USB port of the camera.

Package includes:

• Panthera C2 Trinocular
• Moticam BMH4000X
• Compatible C-mount adapter
• Dust cover
• Power cord
• Allen key
• Blue filter
• Halogen bulb
• LED module
