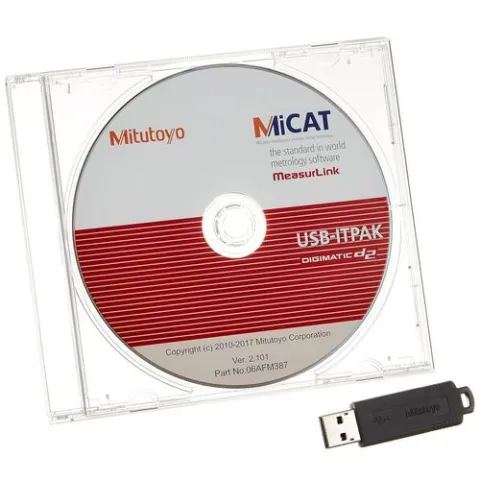

Mitutoyo 06AFM386 Measurement Data Collection Software USB-ITPAK V2.1

Although measurement data can be simply loaded directly into an Excel spreadsheet by connecting the instrument and input tool to a computer, using the optional USB- ITPAK software enables time-saving operations and procedures that significantly improve reliability and efficiency.

Upgraded USB-ITPAK V2.1 now supports U-WAVE, a wireless communication system. Both wired connecting (USB-ITN) and wireless system (U-WAVE) are supported.

New functions of USB-ITPAK V2.1:

• Supports the U-WAVE wireless communication system
• Timer input function
• Measurement date/time display
• Others: Compatible with Windows 8, 64-bit OS

USB-ITPAK V2.1 creates a procedure to input data from gages equipped with Digimatic output to Excel sheets via IT-016U or USB-ITN or U-WAVE. Using together with USB-ITPAK V2.1 will further improve the operational efficiency of repetition inspection work. Best suited for keeping track of inspection data of mass-produced products.

• Automatically calls Excel sheet.
• Cursor moves can be specified.
• Input range can be specified per Digimatic gage, which reduces improper input.
• The last data input can be canceled by a single operation (foot switch, function key etc.)
• Data input or cancellation can be performed at once in multiple-point simultaneous measurement.

Features:

• Setting of Microsoft Excel input: Designation of where to input (workbook, worksheet, cell range), cursor move (right, down),
• and others.
• Selection of measuring method (3 modes available): (1) Sequential measurement; (2) Simultaneous measurement; (3) Individual measurement.
• Data handling
  • Commands available: "Data Output Request", "Data Cancel", "Data Skip", "Arbitrary Character Input" (available only after prior registration and with a foot switch)
  • Command input methods: Pressing a mouse, function key, foot switch, etc. (available only with a foot switch in the discrete measurement mode)
• Number of connectable devices and others
  • Connectable devices: (1) IT-016U, (2) USB-ITN, (3) USB-FSW, (4) U-WAVE-R (Each U-WAVE-R can accept measurement data from up to 100 registered instruments)
  • Number of connectable devices:
    • 100 devices or less for Windows 2000/XP
    • 20 devices or less for Windows Vista/7/8/8.1/10
  • Number of registerable instruments: 400 instruments or less
  • Method to control/identify connected devices: VCP (Virtual COM Port) - for device types (1) and (2), the driver software is switched from HID to VCP to apply this method.
• Data loading time: when using IT-016U/USB-ITN, 0.2 s to 0.3 s per gage unit U-WAVE event drive mode: 0.5 s data refresh interval
• Timer input function (only in simultaneous measurement) - Input interval (time): 0.1 s* to 24 hours maximum. If a shorter time is set, a priority is given to the longer time compared with the actual communication time.
• Measurement date/time display function (available in sequential and simultaneous measurements). The display format is subject to the setting of the Excel sheet.

For more information, please see Data Sheet
