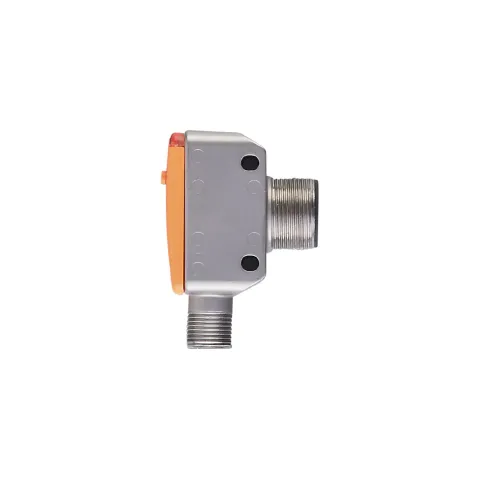

IFM UGT583 Ultrasonic Sensor, PNP, Normally Open / Closed, 1 x M12, Coding A, 60-800 mm Setting Range, Target 100 x 100 mm

Features:

• Robust rectangular metal housing with M18 thread on the side
• Particularly space-saving design for use where space is restricted
• With programmable switching output and scalable analog output
• Non-contact detection independent of color, transparency or surface characteristics of the object
• Intuitive setting of the detection range via pushbutton

For more information, please see Data Sheet

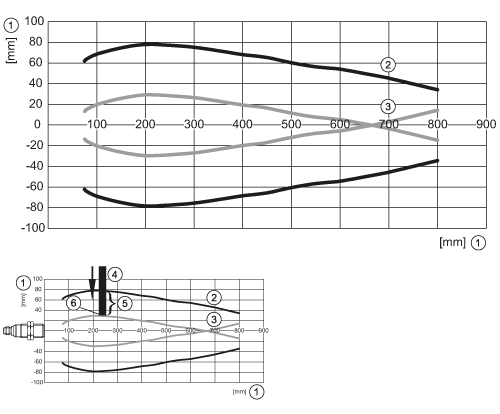

Diagrams and graphs

1: Distance 2: Monitoring range 3: switch-on/switch-off graph 4: Target 100 x 100 mm 5: 50 % of the target in the detection zone 6: Set point
