IFM IY5049 Inductive Sensor, 1.5 mm Sensing Range, PNP, M5 x 0.5 mm, Length 27, Normally Open, 1800 Hz

Features:

• Particularly short housing
• For use where space is restricted
• Space-saving connection technology
• Robust stainless steel housing for use in harsh industrial environments
• Very high switching frequency

For more information, please see Data Sheet

Diagrams and graphs

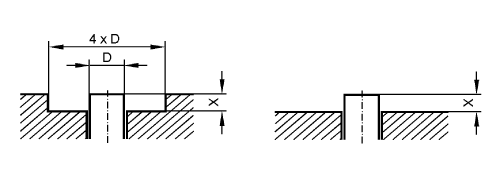

If Sr varies by < 10 % the following free space must be maintained ferromagnetic materials X > 1.5 mm other metals X > 3.0 mm
