Brigade Electronics 8000 DVS 30cm Offset Front Radar Sensor System (9-32VDC)

FR-30LDVS - DVS Offset Front Radar Sensor System

Advanced Front Radar Collision Prediction Systems, Meeting DVS Standards

Brigade's Front Radar sensor are specifically designed to meet the 2024 DVS requirements. DVS Front Radars are advanced dual-radar collision prediction systems with a 180° detection angle to the front of the vehicle. The driver is alerted via the front assist radar, through visual and audible signals if a vulnerable road user is detected in close proximity.

How Does Front Radar Work?

The two-tiered alert system: Level 1, which uses color-coded lights to indicate the presence of objects or individuals in various detection zones while the vehicle is stationary, and Level 2, which escalates to flashing lights and an acoustic alarm when the vehicle begins to move and a vulnerable road user is detected.

Level 1 Warning

When the vehicle is stationary a red, amber or green light is shown if a vulnerable road user is inside the detection zone.

Level 2 Warning

If a vulnerable road user is detected in any zone when the vehicle begins to accelerate, the display unit will alert the driver with a flashing light as well as an acoustic alarm.

The Benefits of Front Radar:

• Blind Spot Monitoring - Enhanced dual radar technology to detect pedestrians and cyclists in blind spots in front of the vehicle
• Visual and Audible Alerts - Alerts drivers through visual and audible signals if a vulnerable road user is detected close to the vehicle when stationary, as well as when the vehicle is moving off
• Real-time Feedback - Provides real-time warnings to drivers for immediate reaction to prevent a collision
• Plug and Play System - Only requires power from the vehicle

Features:

• 180° detection angle
• Detects VRUs in the front blind spot when the vehicle is stationary or moving off
• Detects static and moving objects
• 3-stage visual driver alert dependent on detection distance from vehicle
• Audible and visual driver alert when object is detected and vehicle is moving forward
• Designed for rigid and articulated vehicles
• System active under 5Km/h
• Quick and easy installation
• Compact and rugged design for harsh environments
• Operating frequency: 76-77GHz
• Adjustable display volume
• Self-adjusting brightness display
• Power consumption: 6.5 Watts

Durability & Standards:

• Operating temperature: -40° to +85°C
• CE marked
• E-Marked: UNECE R10 compliant
• Meet 2024 PSS Direct Vision Standard MOIS requirements

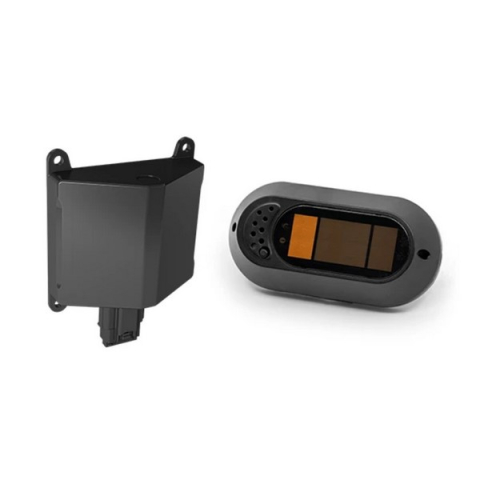

Package Contents:

• 1 x dual radar sensor unit
• 1 x display & bracket
• 1 x radar bracket
• 1 x radar cable 5m
• 1 x IMU module & bracket

For more information, please see Data Sheet
