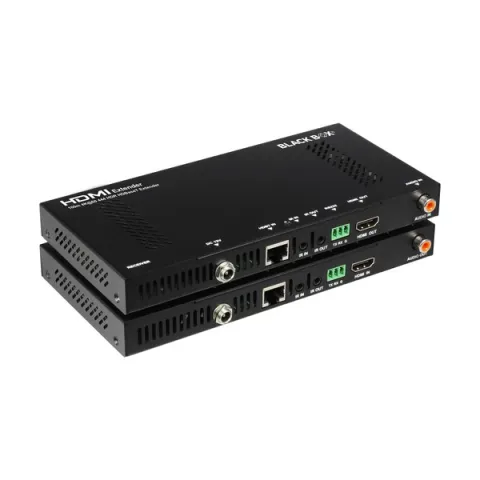

Black Box AVX-HDMI2-HDB-R2 Send High-Quality Video and Audio Signals Farther, Without Replacing the Copper

Features:

• Send high-quality video and audio signals farther, without replacing the CATx cable, with this HDMI 2.0 Extender. In compliance with HDR and HDCP 2.2 standards, it supports 4K at 60 Hz 4:4:4 resolution, Dolby and DTS HD audio, and bi-directional IR control, in a low-profile box.
• The extender consists of a transmitter and a receiver. Configure the ARC channel feed for a TV (with ARC support) or an auxiliary S/PDIF input port via an audio output DIP switch on the receiver. The extender uses proprietary one-way PoC technology to power the receiver from the transmitter. LEDs show power and signal status for established connections between devices.
• With increased bandwidth up to 18 Gbps, you can extend signals over CATx cable up to 328 ft. while maintaining:
• Higher resolutions
• Higher frame rates
• Multiple full HD streams in the same pipe
• 21:9 aspect ratio
• Secure and Compliant
• A locking HDMI connector prevents accidental cable disconnects, and the extender has CE, FCC, IC, RCM, and VCCI approvals.
• HDCP 2.2 compliant
• HD signal transmission via a single CAT5e/CAT6 cable up to 100 m (1080p) and 70 m (4K at 60 Hz YUV 4:4:4)
• HD signal transmission via a single CAT6A/7 cable up to 100 m (1080p) and 100 m (4K at 60 Hz YUV 4:4:4)
• IR pass-through allows you to control the source from the display location or control the display from the source location
• Use two RS-232 control systems for serial communication by connecting to the devices via serial cables to control the source device or display
• Product Includes:
• (1) Transmitter
• (1) Receiver
• (1) Power Adapter (12 VDC, 2 A)
• (2) Phoenix Male Connectors (3.5-MM, 3-PIN)
• (1) IR Emitter Cable
• (1) IR Broadband Receiver Cable (30 KHZ - 50 KHZ)
• (4) Mounting Brackets
