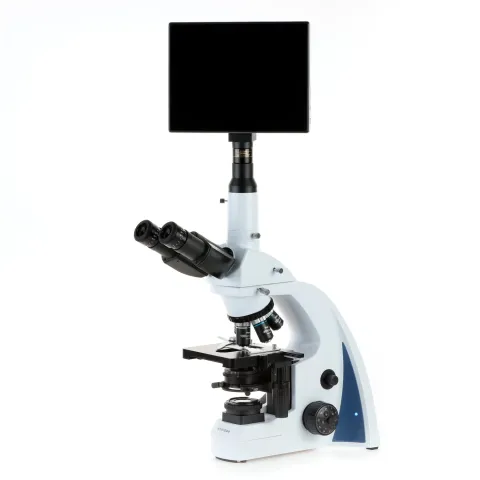

AmScope T670QB-PL-TP T670 Series Advanced Trinocular Compound Microscope 40X-2000X Magnification with 9.7" Touchscreen Imaging System and Koehler LED

T670 Series Advanced Trinocular Compound Microscope 40X-2000X Magnification with 9.7" Touchscreen Imaging System and Koehler LED

Key Features:

The T670Q-PL is designed to be a fully-scalable and economical laboratory microscope. This model is adorned with professional features. Its infinity-corrected optical system ensures reliable, low-distortion magnification, with plan-achromatic corrections for accurate colors, excellent field flatness and edge-to-edge sharpness. A quintuple lens-turret is used, providing five levels of magnification. The Koehler-design LED illumination system provides bright, evenly-distributed light for maximum contrast and definition. A large set of optional upgrades are available for fluorescence, phase-contrast, and darkfield, making this microscope perfect for scaling laboratories and advanced education.

The microscope's head is designed for precision and comfort. The super-widefield optics provide a larger field-of-view so you can see more specimen at any magnification. Compensation-free Siedentopf interpupillary adjustment allows any user to properly align the oculars without readjusting focus. For users with astigmatism or asymmetrical vision, both eyepieces can be independently adjusted to fine-tune focus. The switched trinocular port provides a dedicated mount for a camera to record photos or videos, and is height-adjustable to match focus with the eyepieces. The port uses our 23mm YX-type interchangeable interface which can be replaced with an optional C-mount adapter.

The quintuple objective turret provides instant access to 5 magnification levels to easily focus in on minute details from 40X to 1000X. Additional 20X eyepieces expand the maximum magnification to 2000X with 8 unique levels. This covers magnifications needed for studying hair follicles, cells, soil, and bacteria. The turret's reversed orientation provides more working room above the stage. These high-quality lenses are achromatically corrected to improve resolution and color accuracy, with planatic flat-field correction to provide edge-to-edge sharpness.

The 2-layer mechanical stage provides smooth and precise movement for examination of specimen slides. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimen slides is intuitive and precise for users at any skill level.

Built on Koehler illumination principals, the sub-stage lighting provides evenly-distributed light for optimal contrast. The LED light-source ensures cool, energy-efficient illumination with low heat for live specimens. The bright light-source is daylight-balanced to produce natural colors for imaging. The Abbe light condenser has a high 1.25 numerical aperture for oil-immersion, and an iris diaphragm to optimize contrast and depth-of-field. The condenser holder uses rack-and-pinion height adjustment for precision control, and is centerable for proper alignment. The illuminator's field lens provides an iris diaphragm to control light-spread, optimizing contrast and definition in specimen features.

This package includes an all-in-one imaging system which combines the technologies of a 5MP microscope camera with an Android tablet to provide a feature-rich experience like no other. The high-resolution 9.7” screen brings your microscopic subjects to life in vivid color, with 90° tilt and 360° swivel to set the screen to a comfortable angle while standing or sitting. Touchscreen navigation allows you to capture photos and videos with ease using the built-in software, as well as performing measurement functions. With all of the functionality you would expect from a cutting-edge tablet, the possibilities are endless.

For added flexibility, the tablet is equipped with a micro-HDMI output to expand your display to a larger format when needed, such as a television or monitor. When it comes to file storage, you will be spoiled for choices: you can use the internal storage, save to a microSD card or USB device, or transfer files over you wi-fi network. Wi-fi connectivity not only offers networking possibilities for sharing images, but for performing online tasks while you work.

Packing List:
