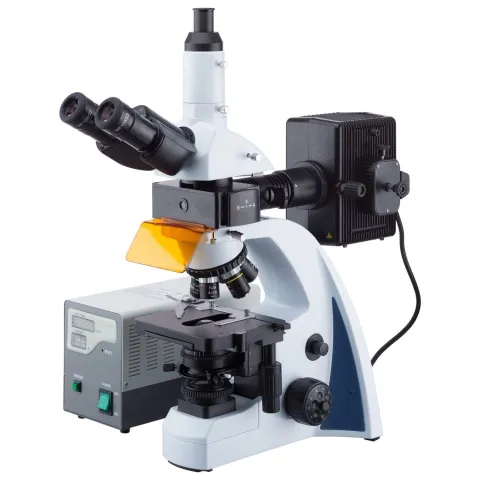

AmScope T670Q-PL-FL-12MBI3 T670 Series Fluorescence Trinocular Compound Microscope 40X-1000X Magnification with 12MP USB 3.0 C-mount Camera

T670 Series Fluorescence Trinocular Compound Microscope 40X-1000X Magnification with 12MP USB 3.0 C-mount Camera

Key Features:

A scalable epi-fluorescence microscope for laboratories and universities

Wide-spectrum 100W mercury HBO arc-lamp and two filter blocks for blue and green band excitation

Super-widefield optics provide a larger field-of-view so you can see more specimen at any magnification

The infinity-corrected optical system reduces distortion and improves color accuracy.

The quintuple lens turret is equipped with five plan-achromatic objective lenses producing high-contrast images with edge-to-edge sharpness.

The Koehler illumination system provides centered, evenly-distributed lighting with a field aperture for maximum contrast and definition.

Monitor and capture photos and videos with the included sensitive 12MP USB 3.0 camera. Professional microscopy software for Windows, Mac, and Linux provide tools for image processing, measuring, and more.

The T670Q-PL is designed to be a fully-scalable and economical laboratory microscope. This model adds epi-fluorescence illumination with a wide-spectrum mercury arc-lamp and two standard filter blocks for blue and green excitation bands. The optical system is infinity-corrected to ensure reliable, low-distortion magnification, with plan-achromatic corrections for accurate colors, excellent field flatness and edge-to-edge sharpness. A quintuple lens-turret is used, providing five levels of magnification. The Koehler-design LED illumination system provides bright, evenly-distributed light for maximum contrast and definition. Additional upgrades are available for phase-contrast and darkfield, making this microscope perfect for scaling laboratories and advanced education.

The microscope's head is designed for precision and comfort. The super-widefield optics provide a larger field-of-view so you can see more specimen at any magnification. Compensation-free Siedentopf interpupillary adjustment allows any user to properly align the oculars without readjusting focus. For users with astigmatism or asymmetrical vision, both eyepieces can be independently adjusted to fine-tune focus. The switched trinocular port provides a dedicated mount for a camera to record photos or videos, and is height-adjustable to match focus with the eyepieces. The port uses our 23mm YX-type interchangeable interface which can be replaced with an optional C-mount adapter.

The quintuple objective turret provides instant access to 5 magnification levels to easily focus in on minute details from 40X to 1000X. This covers magnifications needed for studying hair follicles, cells, soil, and bacteria. The turret's reversed orientation provides more working room above the stage. These high-quality lenses are achromatically corrected to improve resolution and color accuracy, with planatic flat-field correction to provide edge-to-edge sharpness.

The 2-layer mechanical stage provides smooth and precise movement for examination of specimen slides. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimen slides is intuitive and precise for users at any skill level.

Built on Koehler illumination principals, the sub-stage lighting provides evenly-distributed light for optimal contrast. The LED light-source ensures cool, energy-efficient illumination with low heat for live specimens. The bright light-source is daylight-balanced to produce natural colors for imaging. The Abbe light condenser has a high 1.25 numerical aperture for oil-immersion, and an iris diaphragm to optimize contrast and depth-of-field. The condenser holder uses rack-and-pinion height adjustment for precision control, and is centerable for proper alignment. The illuminator's field lens provides an iris diaphragm to control light-spread, optimizing contrast and definition in specimen features.

Fluorescence

The epi-fluorescence illumination system adds incredible versatility to the microscope. The ability to isolate fluorescing compounds allows you to target individual proteins and other nuances. The illuminator uses a high-power mercury arc-lamp for wide-spectrum excitation, with two filter blocks for blue and green excitation, covering a wide range of popular labeling agents and natural fluorophores.

Filters
Filter Set Excitation Filter Dichromatic Cut-on Emission Filter B 490nm 510nm 530nm G2 545nm 580nm 590nm
Mercury HBO Excitation
Mercury HBO lamps produce a wide spectrum of wavelengths, including ultraviolet. While this fluorescent light-source can excite fluorophores throughout its entire spectrum, there are peak wavelengths with optimal output. Band Peak Wavelength UV 334nm, 365nm V 405nm B 436nm G 546nm Y 578nm

Monitor and capture photos and videos with the included 12MP USB3.0 camera. The sensitive back-illuminated sensor is designed for improved low-light imaging, making it suitable for fluorescence and darkfield microscopy. A 0.75X reduction lens is included for use with 23mm-30.5mm ports to capture more of the microscope's field-of-view. Our professional software for Windows provides a wide assortment of capture and photo-editing functions including color correction, time-lapse capture, image stitching, and a full complement of measuring tools. A lite version of our software is available for Mac and Linux with essential functionality for capturing photos and videos.

Packing List:

One trinocular head

One microscope body

Five objective lenses: 4X, 10X, 20X, 40X, 100X

One pair 10X eyepieces

One episcopic illuminator with blue and green filters

One 100W power supply

Two mercury-vapor bulbs

One UV-blocking eye-shield

Two power cords (US and Canada standard)

One dust cover

One sample immersion oil

One C-mount USB camera

One 0.75X reduction lens

Two sizing adapters

One USB 3.0 Type B to USB 3.0 type A cable

One software CD
