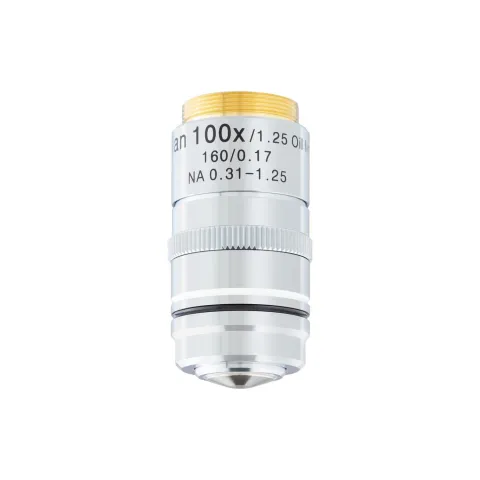

AmScope 100X (Oil) Darkfield Microscope Plan Objective w/ Iris
- This brand new 100X (spring, oil) Darkfield Plan Achromatic microscope objective with iris fits DIN-standard compound microscopes
- Plan Achromatic Objective with Iris
- 100X Magnification Power
- 160/0.17
This is a 100X dark-field objective lens for biological DIN-standard microscopes. Standard bright-field objective lenses present low contrast due to their high numerical apertures. This lens' built-in iris provides control over the aperture, varying between 0.31 and 1.25. This allows for the intensity of the dark-field contrast to be easily adjusted.
| Compatibility |
|
| Optical System | Finite |
|
| Mechanical Tube Length | 160mm |
|
| Mounting Thread | RMS 20.32mm |
|
| Parfocal Distance | 45mm |
|
| Lens Specifications |
|
| Magnification | 100X |
|
| Numerical Aperture | 0.31 to 1.25 |
|
| Corrections | Plan-achromatic |
|
| Cover-glass Thickness | 0.17mm |
|
| Nosecone | Spring |
|
| Immersion Medium | Oil |
|
|
|
