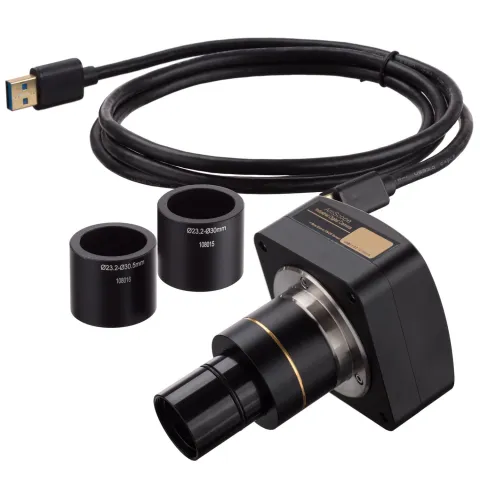

AmScope MU Series 5.3MP USB 2.0 Back-illuminated Color CMOS C-Mount Microscope Camera with Reduction Lens and Calibration Slide
- 5.3MP back-illuminated CMOS camera
- Higher quantum efficiency
- Multi-platform software solutions
- Includes calibration slide for on-screen measurements
The 5.3MP USB2.0MU530-BI is part of our back-illuminated CMOS camera series. Back-illuminated CMOS sensors provide higher quantum-efficiency by moving the photo-diode layer in front of the electronic components, increasing photon-absorption. This translates to less image-noise and dark-current while maintaining high speeds.
The included software for Windows, Mac, and Linux provides an imaging solution for photography and videography. The Windows (8.1/10/11) version provides an extensive toolset for image-processing and measurements. A lite version of the application is provided for Mac and Linux.
Camera Specifications:
Sensor: Sony IMX178 (color)Sensor Type: BSI CMOSSensor Size: 1/1.9" (8.51mm diagonal)Pixel Size: 2.4μm x 2.4μmSensor Pixels: 5.3MP (3072x1728)Sensitivity: 425mv (1/30s)Max Framerates: 5.5fps @ 3072 x1728, 35fps @ 1280x720Binning: 1x1, 2x2Exposure Time: 0.105ms - 15sReduction Lens: 0.5XConnectivity: USB 2.0Compatibility: Windows (32/64 bit) 8.1/10/11, Mac OSX, Linux
