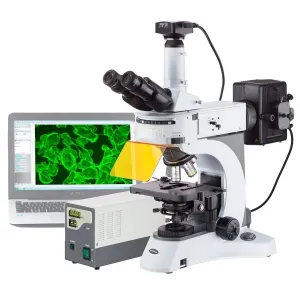

AmScope FM820T-5MG3 FM820 Series Upright EPI-Fluorescence Trinocular Compound Microscope 40X-1000X w/ Rotating Multi-Filter Turret and 5MP Color Global Shutter Camera

Viewing Head

The microscope's head is designed for precision and comfort. The super-widefield optics provide a larger field-of-view so you can see more specimen at any magnification. Compensation-free Siedentopf interpupillary adjustment allows any user to properly align the oculars without readjusting focus. For users with astigmatism or asymmetrical vision, the left ocular can be adjusted to fine-tune focus. The photo port is equipped with a 23mm tube for attaching cameras with compensating lenses, and is height-adjustable to match focus with the eyepieces. The port is compatible with our YX series C-mount adapters which can attach directly to C-mount cameras without a compensating lens - ideal for 1" format sensors. The head is set to a 30° incline which is ideal for viewing from a standing position, and it can be rotated 360°.

Optics

The infinity-corrected optical system eliminates optical errors when using filters and other in-line components, ensuring highly precise images. The quintuple objective turret provides instant access to 5 magnification levels. This allows you to efficiently move through magnifications from 40X to 1000X. The turret's reversed orientation provides more working room above the stage. These high-quality lenses are achromatically corrected to improve resolution and color accuracy, with planatic flat-field correction to provide edge-to-edge sharpness.

The Stage

The 2-layer mechanical stage provides smooth and precise movement for examination of specimen slides, with a large translation range for viewing larger samples. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimen slides is intuitive and precise for users at any skill level. Symmetrical focus controls are coaxially mounted for fast, intuitive focusing. A height limit can be set to prevent contact damage, as well as presetting optimal focus distance.

Koehler Transmitted Illumination

Built on Koehler illumination principals, the sub-stage lighting provides evenly-distributed light for optimal contrast. The rear-mounted 30W halogen light-source provides 100 CRI illumination with ample brightness for contrast-enhancement methods like darkfield. The lower color temperature of the halogen light-source causes less eyestrain compared to high-Kelvin LED. The light condenser uses a swing mechanism for optimized lighting at both high and low magnifications, with a NA0.25 setting for full coverage at extremely low magnifications. An iris diaphragm allows you to adjust the aperture to optimize contrast and depth-of-field. The condenser holder uses rack-and-pinion height adjustment for precision control, and is centerable for proper alignment. The condenser is top-mounted for easier replacement when working with additional condensers. The illuminator's field lens provides an iris diaphragm to control light-spread, optimizing contrast and definition in specimen features.

Epi-fluorescence Illumination

The epi-fluorescence illumination system adds incredible versatility to the microscope. The ability to isolate fluorescing compounds allows you to target individual proteins and other nuances. This microscope is equipped with a six-position filter turret for easy transitions. Four filter blocks are already mounted (ultraviolet, violet, blue, and green) for popular labeling agents and natural fluorophores. The illuminator uses a high-power mercury arc-lamp for wide-spectrum excitation.

Fluorescence

Digital Imaging

The highly-sensitive 5MP camera uses a cutting-edge Sony global-shutter sensor. The camera is designed to excel in low-light with high maximum framerates, and eliminates rolling-shutter distortion. The camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features and specialized tools for fluorescence color-mapping. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.
