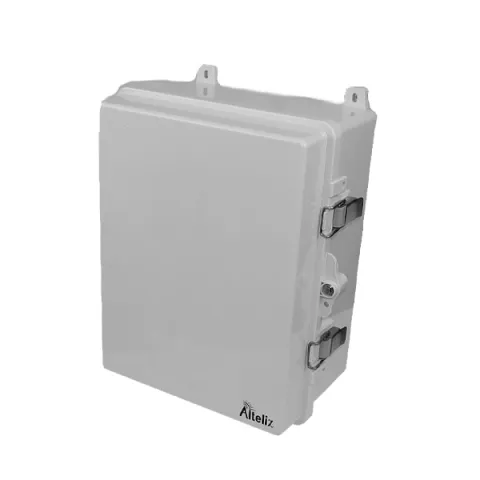

Altelix NP141107-DIN 14x11x7 Polycarbonate + ABS NEMA 4X DIN Rail Enclosure with No Cable Grommets Pre-Installed

The Altelix NP141107-DIN NEMA 4X enclosure is ideal for protecting DIN rail mounted devices from harsh environments and tampering. With the generous size of this enclosure the NP141107-DIN can accommodate a wide range of equipment.

35mm Top Hat DIN Rails

Included with this enclosure are (3) 35mm top hat DIN rails. Using the included screws, these DIN rails mount to raised bosses located in the base of this enclosure. Up to (5) DIN rail kits can be installed into the enclosure base.

RF Transparent Design

The NP141107-DIN is ideal for WiFi applications. The non-metallic design of the enclosure will not interfere with the radio's operation. The size of this enclosure will fit a wide range of popular wireless access points on the market.

Secure Your Equipment

These NP series enclosures feature a gasketed lid with dual stainless steel quick release latches. A stainless steel security screw with keys and a provision for a padlock are also provided.

Polycarbonate + ABS Protection Built to Last

This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. This enclosure can be easily drilled and modified by the installer to suit unique site requirements It meets or exceeds NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66.

Multiple Mounting Options

This enclosure features (4) external mounting feet which can be used for wall mounting or with optional pole mounting kit. Mounting points are also provided inside the enclosure. These can be easily drilled out and used for applications requiring a more secure installation.

Features:

• Includes (3) Steel 35mm Top Hat DIN Rails and Screws
• Gasketed lid with dual stainless steel latches
• Raised mounting bosses in base for use with equipment mounting plates and DIN rail kits
• Durable Polycarbonate + ABS construction
• Weatherproof and UV Stable
• Meets NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66
• Tamper-Proof locking screw with key and provision for padlock
• Can be mounted using external mounting feet or internal mounting feet
• RF transparent for wireless devices
• Multiple size knock-out holes on bottom of enclosure

Applications:

• DIN Rail mounted equipment
• DIN Rail mounted network switches
• DIN Rail terminal strips
• DIN rail relay boxes
• Multi purpose utility box
• Home automation
• Security and surveillance systems
• LED controllers
• Multi purpose DIN rail enclosure box
• Network switches
• Media converters
• Outdoor weather protection
• Protection against theft or damage
• Concealment of equipment
