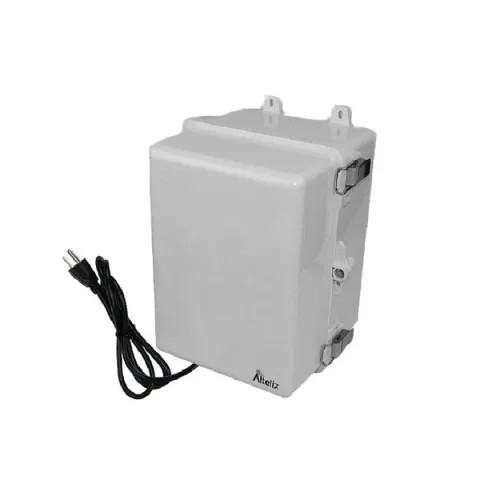

Altelix NP120909A1C-DIN 12x9x9 Polycarbonate + ABS NEMA 4X DIN Rail Enclosure with 120 VAC Outlets & Power Cord

The Altelix NP120909A1C-DIN NEMA 4X enclosure is simple to install because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. Two internal pre-wired 120VAC power outlets are provided to power your equipment. It is ideal for protecting DIN rail mounted devices from harsh environments and tampering.

Get your project up and running quickly and transition to hard-wired later if needed. The power cord can removed and the power receptacle can be hard-wired by a qualified installer.

Install 35mm Top Hat DIN Rails in Base and Lid

This enclosure provides multiple ways to install the (3) included 35mm top hat DIN rails. Raised bosses located in both the base and lid provide (4) DIN rail mounting locations in the base and (5) DIN rail mounting locations in the lid. Additional DIN rails kits can be purchased from Altelix (see accessory section). These same bosses can also be used to install optional equipment mounting plates. This provides greater versatility when mounting equipment inside the enclosure. A large flat section in both the base and lid are also provided for use with the hook-n-loop tape included in the accessory kit.

RF Transparent Design

The NP120909A1C-DIN is ideal for WiFi applications. The non-metallic design of the enclosure will not interfere with the radio's operation. The size of this enclosure will fit a wide range of popular wireless access points on the market.

Secure Your Equipment

These NP series enclosures feature dual stainless steel quick release latches. A stainless steel security screw with keys and a provision for a padlock are also provided.

Polycarbonate + ABS Protection Built to Last

This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. This enclosure can be easily drilled and modified by the installer to suit unique site requirements It meets or exceeds NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66.

Complete with Cable Grommets and Wire Management Accessories

This enclosure includes an assortment of cable grommets and cable glands that can be installed in the knock-out holes for a weather resistant seal. Also included in the accessory kit are wall anchors, zip ties, wire management loops, hook-n-loop tape, ground wire, (2) door locking keys and more.

Multiple Mounting Options

This enclosure features (4) external mounting feet which can be used for wall mounting or with optional pole mounting kit. Mounting points are also provided inside the enclosure. These can be easily drilled out and used for applications requiring a more secure installation.

Features:

• Includes (3) Steel 35mm Top Hat DIN Rails and Screws
• No electrical wiring required
• (2) Internal pre-wired 120VAC power outlets
• Pre-wired 5 foot 3-prong power cord
• Raised mounting bosses in both the base and lid for use with equipment mounting plates and DIN rail kits
• Durable Polycarbonate + ABS construction
• Weatherproof and UV Stable
• Meets NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66
• Extra deep gasketed lid with dual stainless steel latches
• Tamper-Proof locking screw with key and provision for padlock
• Can be mounted using external mounting feet or internal mounting feet
• RF transparent for wireless devices
• Multiple size knock-out holes on bottom of enclosure
• Includes (2) locking keys, cable grommets, cable glands, zip ties, hook-n-loop tape and wall mounting hardware

Applications:

• DIN Rail mounted equipment
• DIN Rail mounted network switches
• DIN Rail terminal strips
• DIN rail relay boxes
• Multi purpose utility box
• Home automation
• Security and surveillance systems
• LED controllers
• Multi purpose DIN rail enclosure box
• Network switches
• Media converters
• Outdoor weather protection
• Protection against theft or damage
• Concealment of equipment
