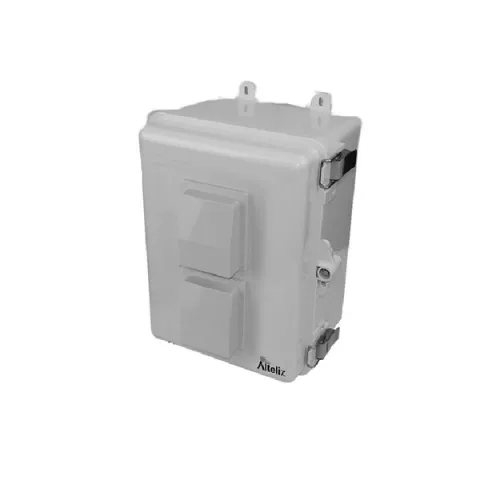

Altelix NP120907V-DIN 12x9x7 Polycarbonate + ABS Vented DIN Rail Enclosure

Altelix is excited to offer the newly redesigned NP120907 series enclosures. Some of the new features include:

• Dual stainless steel latches
• Multiple mounting options - (4) external mounting feet and internal mounting points
• Deeper enclosure base
• Increased number of multiple sized knock-out holes provided on bottom of enclosure
• Raised bosses in base for use with DIN rail kits

The Altelix NP120907V-DIN NEMA enclosure is ideal for protecting devices from harsh environments and tampering, while allowing ventilation for installed equipment or batteries. It features an extra deep lid providing additional depth.

Ventilation

The NP120907V features two vents with rain shields to help expel heat from inside the enclosure. Screens on the inside of the vents can be removed and cleaned as required.

35mm Top Hat DIN Rails

Included with this enclosure are (3) 35mm top hat DIN rails. Using the included screws, these DIN rails mount to raised bosses located in the base of this enclosure. Up to (5) DIN rail kits can be installed into the enclosure base. Additional DIN rail kits can be purchased from Altelix (see accessories section). In addition, a large flat section in the base is also provided for use with the hook-n-loop tape included in the accessory kit.

RF Transparent Design

The NP120907V-DIN is ideal for WiFi applications. The non-metallic design of the enclosure will not interfere with the radio's operation. The size of this enclosure will fit a wide range of popular wireless access points on the market.

Secure Your Equipment

These NP series enclosures feature a gasketed lid with dual stainless steel quick release latches. A stainless steel security screw with keys and a provision for a padlock are also provided.

Polycarbonate + ABS Protection Built to Last

This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. This enclosure can be easily drilled and modified by the installer to suit unique site requirements.

Complete with Cable Grommets and Wire Management Accessories

This enclosure includes an assortment of cable grommets and cable glands that can be installed in the knock-out holes for a weather resistant seal. Also included in the accessory kit are wall anchors, zip ties, wire management loops, hook-n-loop tape, ground wire, (2) door locking keys and more.

Multiple Mounting Options

This enclosure features (4) external mounting feet which can be used for wall mounting or with optional pole mounting kit. Mounting points are also provided inside the enclosure. These can be easily drilled out and used for applications requiring a more secure installation.

Features:

• Includes (3) Steel 35mm Top Hat DIN Rails and Screws
• Dual vents with rain shields and screens to help expel heat
• Integral internal mounting bosses in base for use with DIN rails
• Durable Polycarbonate + ABS construction
• Weatherproof and UV Stable
• Meets NEMA 3R, 3RX and IP24
• Gasketed lid with dual stainless steel latches
• Tamper-Proof locking screw with key and provision for padlock
• Can be mounted using external mounting feet or internal mounting feet
• RF transparent for wireless devices
• Multiple size knock-out holes on bottom of enclosure
• Includes (2) locking keys, cable grommets, cable glands, zip ties, hook-n-loop tape and wall mounting hardware

Applications:

• DIN Rail mounted equipment
• DIN Rail mounted network switches
• DIN Rail terminal strips
• DIN rail relay boxes
• Multi purpose utility box
• Home automation
• Security and surveillance systems
• LED controllers
• Multi purpose DIN rail enclosure box
• Network switches
• Media converters
• Outdoor weather protection
• Protection against theft or damage
• Concealment of equipment
