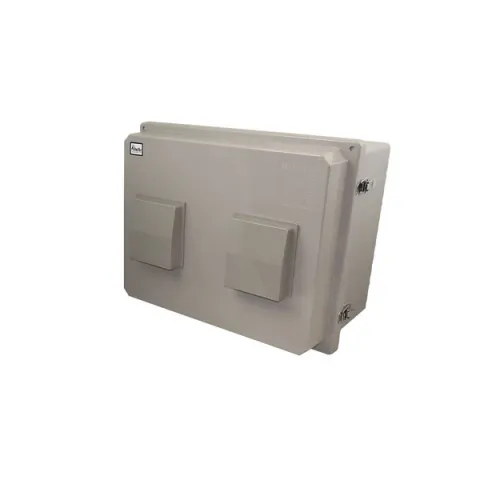

Altelix NF162012V-DIN 16x20x12 Vented Industrial DIN Rail Fiberglass Enclosure

Extreme Protection Built to Last

The Altelix NF162012V-DIN Weatherproof Vented DIN Rail Enclosure is ideal for protecting DIN rail mounted equipment from harsh environments and tampering, while allowing ventilation for equipment or batteries. It features two heavy duty 12 gauge steel DIN rail mounting brackets that provide 12 DIN rail mounting positions. For convenience, the enclosure also includes two pre-cut steel 35mm top-hat rails and mounting hardware.

Altelix NF162012V Series Enclosures are designed with all the same rugged components as NF14 Series enclosures, but in a larger size to accommodate larger and more equipment. This enclosure features two 4 inch air vents covered by rain shields with cleanable screens which helps expel heat from the installed equipment.

Extreme Protection Built to Last

This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door includes stainless steel quick release latches with padlock hasps.

Increased Interior Space

The NF162012V series enclosures feature an extra deep lid, over 3 inches deep. With the generous size of this enclosure and extended lid the NF162012V can accommodate a wide range of equipment. Six raised bosses with threaded brass inserts are provided inside the enclosure for mounting equipment plates and equipment brackets.

Mounting

Stainless steel brackets are included for secure wall mounting.

Features:

• New Wider 16x20x12 Size to Accommodate More Equipment!
• Steel Din Rail Mounting Brackets with 12 Rail Mounting Positions
• Includes (2) Steel 35mm Top Hat DIN Rails and Screws
• (2) 4" Vents with Rain Shields and Screens
• Water Resistant JIC Enclosure Design with Gasketed Lid
• Extra Deep Extended Lid for Increased Equipment Clearance
• NEMA Type 3R, 3RX / IP24 Rated
• Stainless Steel Hinges with High Quality 316 Steel Hinge Pins
• Stainless Steel Quick Release Latches with Padlock Hasps
• Fiberglass Reinforced Polyester, FRP
• Weatherproof, UV Stable and Highly Corrosion Resistant
• Includes Stainless Steel Mounting Feet
• RF Transparent Enclosure

Applications:

• DIN Rail Mounted Equipment
• Rapid Deployment Systems
• Harsh Environments
• WiFi Enclosure
• RFID Reader Enclosure
• IoT Sensors
• SCADA Remote Terminal Unit
• Security and Surveillance Systems
• Solar Equipment Enclosure
• Outdoor use of Indoor Equipment
• Protection from Vandalism
• Concealment of Electronic Equipment
• Building Automation Controls
• Industrial Controls Enclosure
