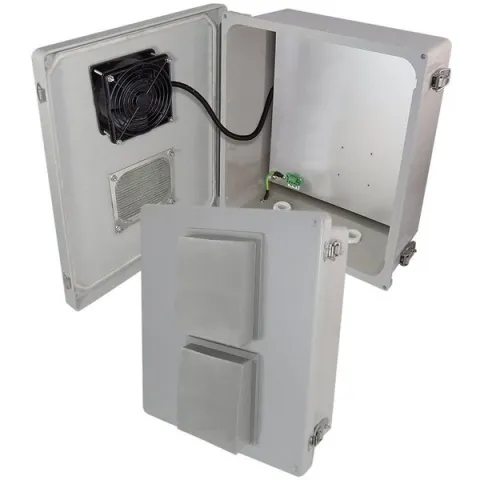

Altelix NF141206VFD4 NF Series 14x12x6 Fiberglass Weatherproof Vented NEMA Enclosure with 48 VDC Cooling Fan

48 VDC Powered Fan Cooled NEMA Enclosure

The Altelix NF141206VFD4 features two 4" vents and a 48VDC thermostat controlled cooling fan which helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Rain shrouds keep rain water from entering the enclosure while allowing ventilation for your equipment.

This enclosure can be powered from 48VDC solar and battery power sources, and features a terminal block for easy wiring.

Extreme Protection Built to Last

This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure accommodates a wide range of equipment.

Cable Glands

The enclosure features three unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Terminal Block

This enclosure features top entry terminal block. It is easily removable which helps simplify on-site wiring. It can accept wires sizes from 12 to 18 AWG. The wires are secured by side terminal screws.

Mounting

Stainless steel brackets are included for secure wall mounting.

Features:

• 48VDC Thermostat Controlled Cooling Fan
• Two (2) 4" Vents with Rain Shields and Screens
• Removable Terminal Block
• Aluminum Equipment Mounting Plate
• Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
• Fiberglass Reinforced Polyester, FRP
• Weatherproof, UV Stable and Highly Corrosion Resistant
• NEMA Type 3R, 3RX / IP24 Rated
• Includes Cable Glands and Stainless Steel Mounting Feet
• RF Transparent Enclosure

Applications:

• Rapid Deployment Systems
• Solar Equipment
• Vehicle Mounted Equipment
• Battery Powered Equipment
• Battery and Charger Box
• Harsh Environments
• IoT Sensors
• SCADA Remote Terminal Unit
• Security and Surveillance Systems
• Outdoor use of Indoor Equipment
• Protection from Vandalism
• Concealment of Electronic Equipment
• Building Automation Controls
• Industrial Controls Enclosure
