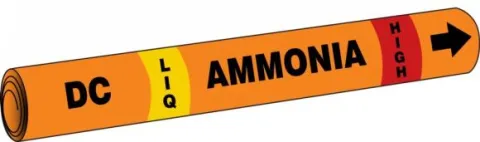

Accuform RAP302D IIAR Snap Tite Ammonia Pipe Marker: DC/LIQ/HIGH, IIAR ST OD 1-1/2" - 2"

IIAR Snap Tite Ammonia Pipe Marker: DC/LIQ/HIGH, IIAR ST OD 1-1/2" - 2"

Label system, physical state, and pressure level with Snap Tite™ marker for DC/LIQ/HIGH.

Snap Tite™ pipe marker identifies ammonia refrigeration piping and system components: DC/LIQ/HIGH

System Type: Defrost Condensate; Physical State: Liquid; Pressure Level: High

Meet the International Institute of Ammonia Refrigeration (IIAR) guidelines for proper marking of pipes as specified in Bulletin No. 114, March 2014

IIAR pipe markers contain the ammonia name and identify the chemical's system, physical state, pressure level, and directional flow

Product Description

Snap Tite™ - Pre-coiled to 'SNAP' around for a snug fit. 20-mil rigid vinyl has legend repeated upright and up-side-down for universal direction fit and viewing. Temperature range is -4° to 158°F. Ideal for surfaces in less perfect condition.

Pipe OD 3/4" - 1 1/4" = Marker Size 6" x 9 3/4"
Pipe OD 1 1/2" - 2" = Marker Size 9" x 14"
Pipe OD 2 1/4" - 6" = Marker Size 25" x 20 3/4"
Pipe OD 6 1/4" - 8" = Marker Size 30" x 20 3/4"
