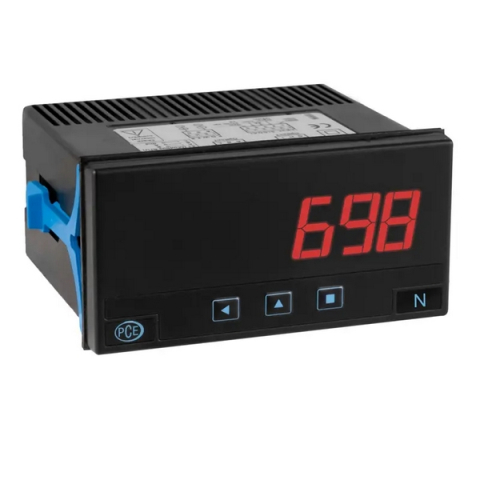

PCE Instruments PCE-DPD-U Multi-Signal Digital panel Indicator with 4-digit LED Display

The multi-signal digital panel indicator is configurable to work as voltmeter, ammeter, process signals (mA) with and without excitation voltage, temperature, resistors, potentiometers and frequencies. The digital panel indicator has a size of 96 x 48 mm and displays the values on a 4-digit LED display. The measurement range is 9999 to -1999 with selectable decimal point. The indicator has quick access to alarms setpoint, external contact for special functions, Eco mode of reduced consumption, 5 brightness levels.

The supply voltage of the multi-signal digital panel indicator from 18 to 265V AC / DC. Optionally the indicator can have relay output, analog output and Modbus RTU communications.

Features:

• IP 65 on the front
• Different units possible
• Digital display for industrial processes
• Optional outputs
• 4-digit digital display
• Many sensors can be connected

Includes:

• 1 x Panel Indicator PCE-DPD-U
• 2 x Clamps
• 1 x Instruction manual
