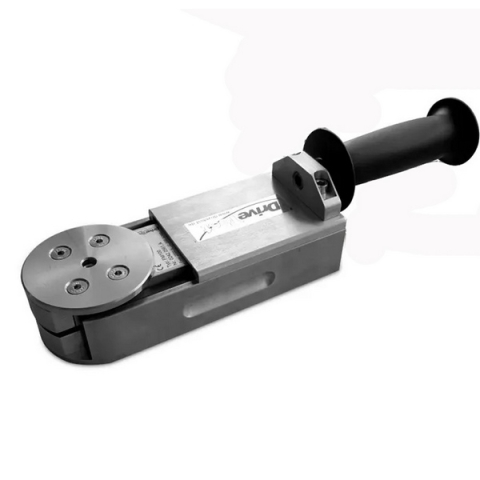

PCE Instruments FM100-SY-500-2000 Closing Force Transducer FM100 for Doors and Gates

The closing force transducer is an electronic measuring device for externally powered doors and gates. Typical use is the final inspection of new systems as well as regular inspections. Its uncompromising design combines precision with practical robustness and ensures accurate measured values even after years of use in harsh environments.

In the case of cyclical measurements on systems with several doors and gates, a quick and easy implementation is of great importance. For this purpose, Drive Test has developed software that drastically reduces the measurement process and the effort required for documentation. With just a few operating steps, the measurements of a complete system can be taken over, printed out in tabular form and saved in a database.

Features:

• Support of relevant standards - EN 12445/12453, EN 60335-2, DIN V 18650, ASR A1.7, etc.
• Precise measurements
• Robust design
• Ease of use - operate with a single button or remotely via Microsoft® DLL interface or National Instruments® LabView library
• Complete scope of delivery - including high-quality transport case and software
• Professional, comprehensive PC software - PinchPilot
• Comprehensive user support - calibration service, standard change service guaranteed the application of the latest version of the standard
• Software support - integration into existing software structures possible
• Extensive systems can be measured in one run

Software/App

For this measuring devices you need one of the software tools. The software is used to evaluate the data obtained during closing force measurements. Depending on which measuring device or which evaluation device you have, you can download different software.

• PC/Laptop Windows 7 or higher
• USB serial port or Bluetooth interface
• Measuring device
• for the following measuring devices: Original BIA Class 1, BIA 600, FM 100, FM 200, FM 202, FM 205, FM 206, FM 207, FM 208, FM 300

Force Meter App/Description

For the measuring devices you need one of the software tools. The software is used to evaluate the data obtained during clamping force measurements. Depending on which measuring device or which evaluation device you have, you can download different software.

• Download App in Google Play Store
• Android device
• for the following measuring devices: BIA-1 BT, BIA-600 BT, FM-100 BT, FM-300 BT

Technical requirements

• Mobile Android device (tablet/ smartphone)
• Android 5.0 or higher
• Bluetooth interface
• Bluetooth measuring device (wireless/ wireless)

Includes:

• 1 x Closing force transducer FM100 with 2.5 m / 8.2 ft connection cable
• 1 x Separate measured value acquisition module (SEB2 display device) with LCD display, LED display, Membrane button and serial interface
• 1 x 9V block battery
• 1 x Transport case with foam insert for the complete scope of delivery
• 1 x PC connection cable (USB)
• 1 x USB data stick with PC evaluation software PinchPilot and documentation
• 1 x Manual
• 1 x ISO calibration certificate
