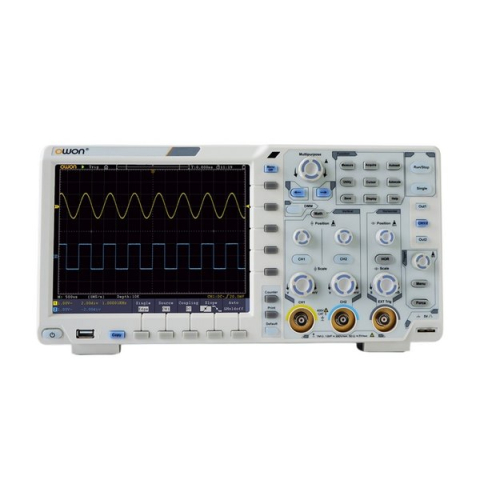

Owon XDS3102 XDS3000 Series N-in-1 Digital Oscilloscope 100MHz 1GS/s 8bits ADC 2CHs 70000wfms/s

XDS3000 Series N-in-1 Digital Oscilloscope 100MHz 1GS/s 8bits ADC 2CHs 75000wfms/s

Super Performance

• 8-bit high resolution ADC, restoring the waveform detail fully
• 40M record length
• Low background noise, vertical sensitivity in 1 mV/div - 10 V/div
• Multi- trigger, and bus decoding function
• SCPI, and LabVIEW supported

Creative New Look

• Ultra-thin body-design, less space accommodation
• Multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX, and more
• VGA port - better solution for video expansion, and teaching demonstration
• 8 inch 800 x 600 high resolution LCD

N-in-1

Functions as data logger, and multimeter with data logging function, and dual-channel 25MHz / 50MHz arbitrary waveform generator, furthermore, battery pack, and WiFi module supported

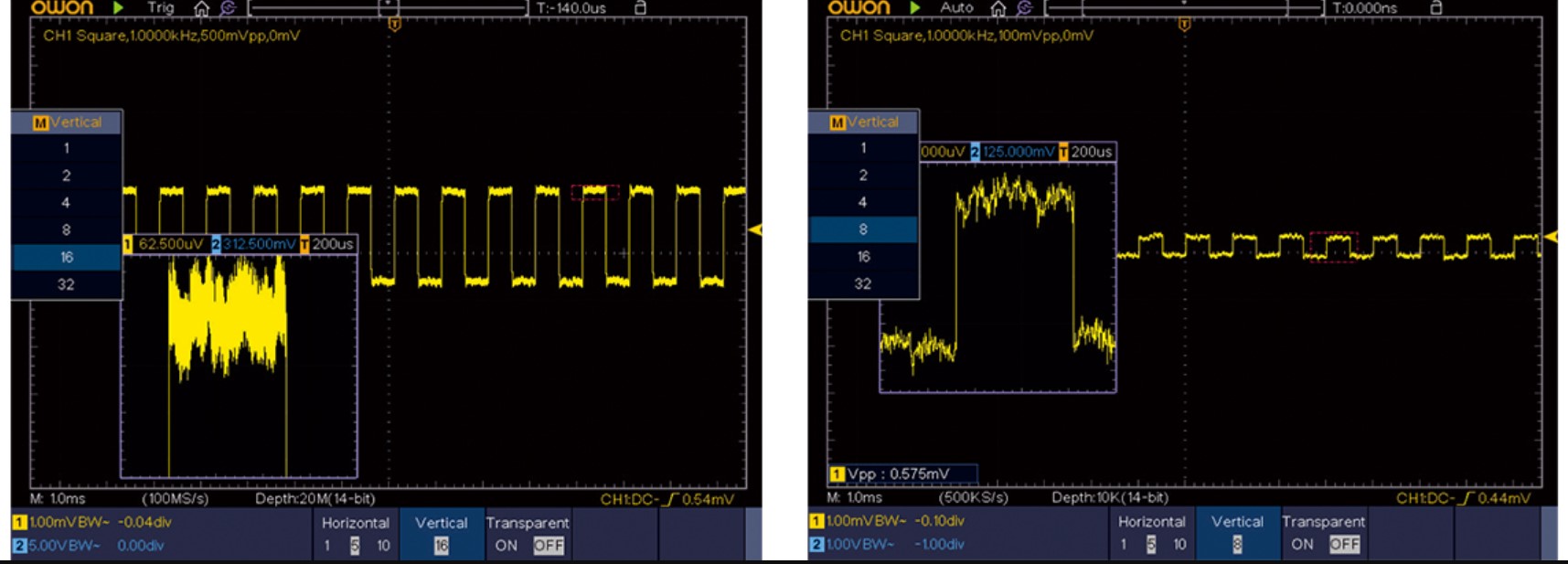

1. ADC and original magnifier function

XDS series introduce hardware ADC, the precision is 16/64 times against other oscilloscope on market. Equipping with OWON's original magnifier function, it can observe the signal low down to 31.25μV/div.

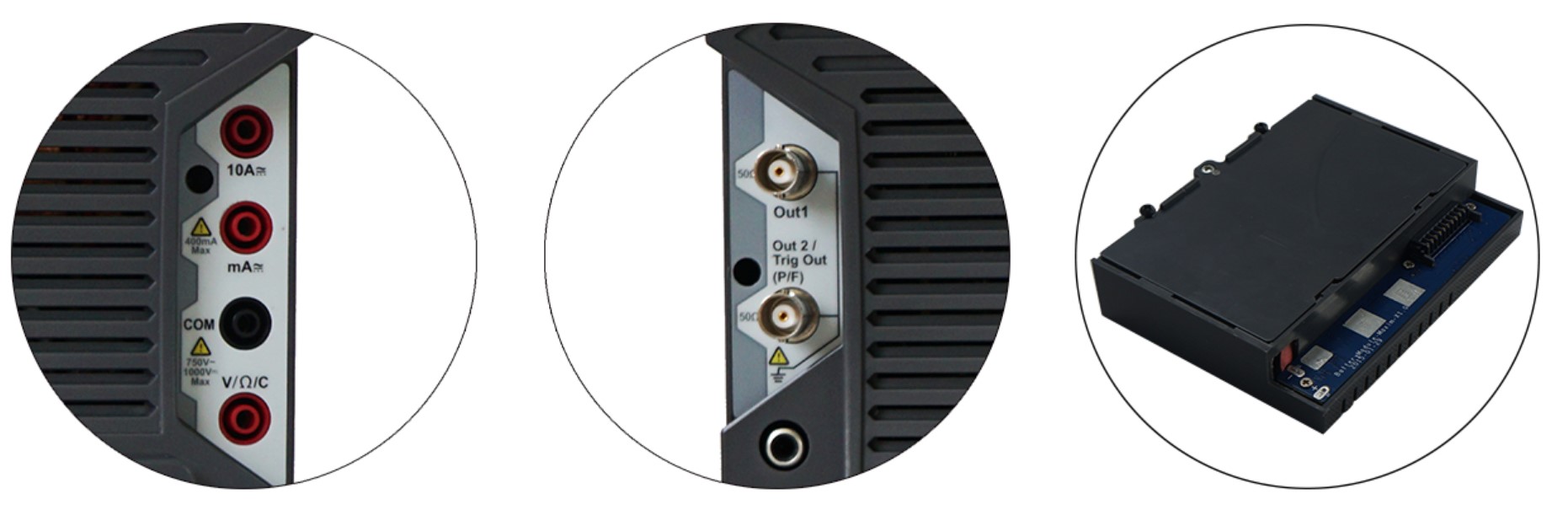

2. Multi-function mobile tester

Oscilloscope + signal generator + multimeter + data logger + frequency counter + decoder. Support Li-on battery to implement floating test.

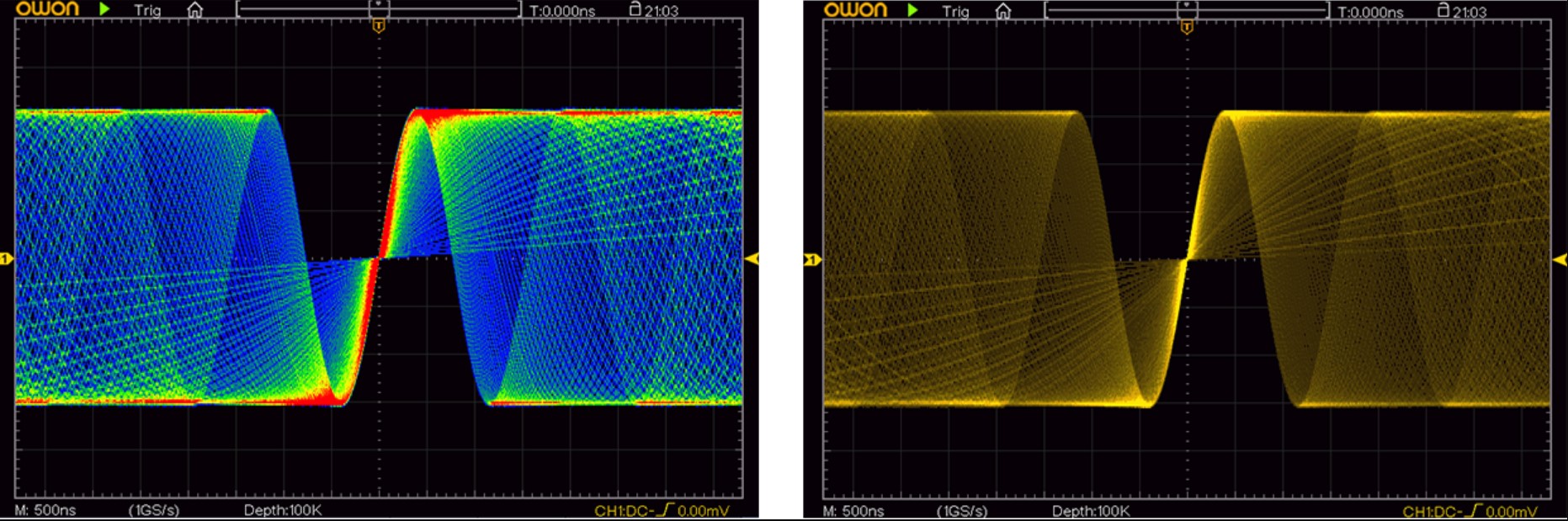

3. Waveform refresh rate, muti-level gray scale and color temperature display.

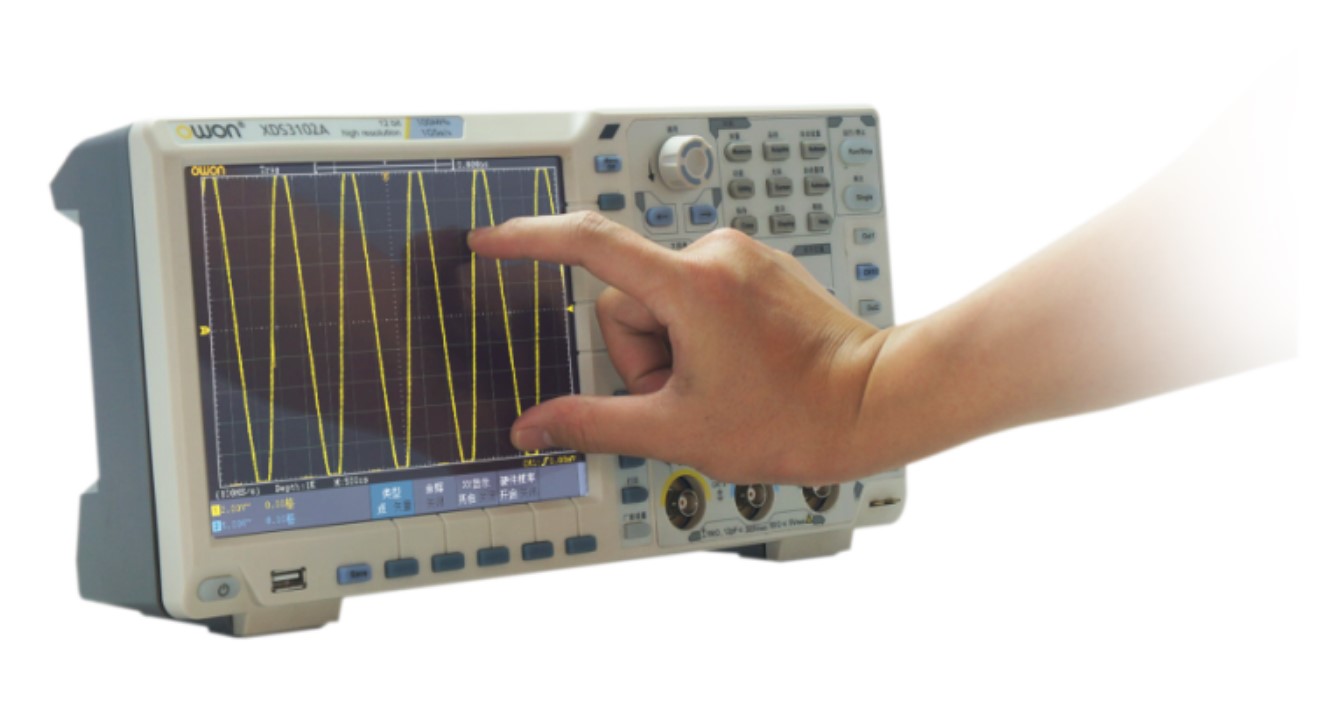

4. Multi-touch screen, easy to operate

Package Includes:

• Power Cord
• Quick Guide
• CD Rom
• USB Cable
• Probe
• Probe Adjust

For more information, please see Specifications and User Manual
