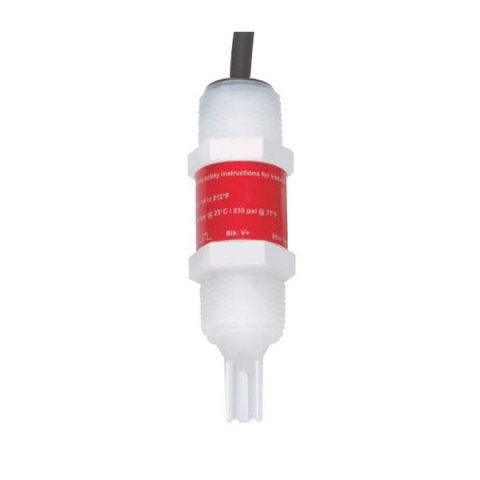

GF Piping Systems 3-2350-3-1 Type 2350 Temperature Sensor 4-20 mA Output 3/4 NPT (15 ft Cable)

The type 2350 Temperature Sensor has a one piece injection molded PVDF body that is ideal for use in high purity applications. It also outlasts metal sensors in aggressive liquids and eliminates the need for costly custom thermowells. These sensors have a field-scaleable 4 to 20 mA output. Dual threaded ends (3/4 in. NPT) allow submersion in process vessels, or in-line installation with conduit connection. An integral adapter kit (sold separately) may be used to create a compact assembly with field mount versions of the type 9900 Transmitter.

Features:

• 4 to 20 mA output
• Standard 3/4 in. NPT process connection
• One-piece injection molded PVDF body
• Pt1000 platinum RTD in extended tip for quick response
• Easy installation
• Threaded for in-line or submersible installation

Applications:

• Plating Bath Temperature Control
• Heat Exchange Monitor
• R.O. and D.I. System Monitor
• Hot/Cold Mixing System Monitor
• Data Acquisition Cooling Loops
• Effluent Monitoring
• HVAC
• Chemical Processing

For more information, please see Data Sheet
