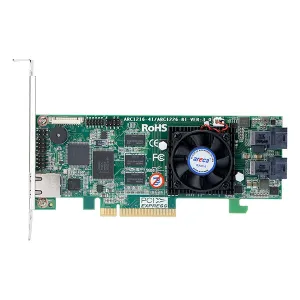

ARC-1226-8I SAS RAID Adapter, 12G 3.0/ PCI-e 3.0 x 8 Low Profile by Areca
- Specification
- Overview
- Customers Also Bought
- Your Recently Viewed Items
- Reviews
Overview
ARC-12x6 internal PCIe 3.0 host RAID controllers are a cost-effective solutions for connecting up to 4/8 12Gb/s SAS peripheral devices. The 12Gb/s SAS is designed for backward compatibility with 6Gb/s and 3Gb/s SAS/SATA hard drives. The 12Gb/s SAS interface supports both 12Gb/s SAS disk drives for data-intensive applications and 6Gb/s SATA drives for low-cost bulk storage of reference data. The ARC-1216-4i/4x and ARC-1226-8i/8x RAID controllers only support directly attach to 4/8 SAS/SATA drives without supporting the expand function. The ARC-12x6 series default support 1GB on-board DDR3-1600 SDRAM memory.
Features:
- Multiple RAID 0 and RAID 10 (1E) support (RAID 00 and RAID100)
- Support RAID 1 - Multi Mirroring and Mirrored Pass-Through Disk
- Multiple RAID selection
- Configurable stripe size up to 1MB
- Support HDD firmware update
- Online array roaming
- Online RAID level/stripe size migration
- Online capacity expansion and RAID level migration simultaneously
- Online volume set growth
- SED (self-encrypting drives) function support
- Multiple pairs SSD/HDD disk clone function
- SSD automatic monitor clone (AMC) support
- Instant availability and background initialization
- Support global and dedicated hot spare
- Automatic drive insertion/removal detection and rebuilding
- Support for native 4K and 512 byte sector SAS and SATA devices
- Support intelligent power management to save energy and extend service life
- Support NTP protocol synchronize RAID controller clock over the on board Ethernet port
Operating Systems:
- Microsoft Windows
- Red Hat Linux, Centos Linux, SUSE Linux, Fedora, Debian Linux, Ubuntu Linux
- OpenBSD
- XenServer
- unRAID
- Solaris
- FreeBSD
- macOS
- VMware ESXi
