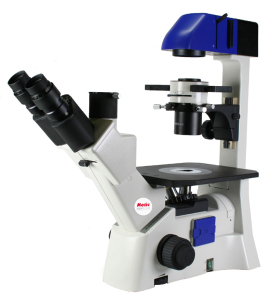

Swift MAE-31R MAE Series Trinocular Microscope Infinity Corrected 4X 10X (Phase) 20X (Phase) W10XD 22mm ELWD 0.30 6V/30W Halogen Koehler Plain

MAE-31R Series Trinocular Microscope Infinity Corrected 4X, 10X (Phase), 20X (Phase) W10XD, 22mm ELWD N.A. 0.30 6V/30W Halogen Koehler Plain

Inverted infinity and phase contrast microscope.

With a wide range of features for university and laboratory use, this advanced research microscope features infinity corrected and phase contrast optics, halogen illumination, and trinocular head. Complimenting the illumination system is the extra-long working distance (ELWD) 0.30 N.A. condenser and its 72mm working distance for larger sample sizes.

This microscope includes built-in internal 110-220V auto-switching power supply. Ergonomically designed, professional frame with low-position coaxial focusing allows one-handed operation, making extended use comfortable.

Features:

• Optical system - Color Corrected Infinity Optical System
• Observation tube - Trinocular head, Siedentopf type
• Inclination - 45º inclined
• Trinocular light split - 100:0/20:80
• Interpupillary distance - 55-75mm
• Diopter adjustment - Both eyepieces, +/- 5 diopter
• Eyepieces - Widefield N-WF10X/22mm with diopter adjustment
• Nosepiece - Quintuple, under-mounted, side-facing
• Objective classification - CCIS Plan Achromatic, DIN
• Objectives - 4X/0.10 (WD 23.5mm), 10X/0.25 (WD 7.5mm), 20X/0.60 (LWD 7mm)
• Objective mounting thread - W 4/5"x1/36" (RMS standard)
• Stand type - Inverted
• Stage - Plain stage with metal and glass stage inserts
• Stage size - 200x260mm
• Condenser - Focusable and centerable ELWD condenser N.A. 0.30 (WD 72mm)
• Diaphragm - Iris diaphragm
• Focus mechanism - Coaxial coarse and fine focusing system with tension adjustment
• Fine focus precision - 2μm
• Free working distance - Working distance without condenser 231mm
• Transmitted illumination - Koehler Quartz halogen 6V/30W with intensity control
• Transformer - Internal
• Power supply - IEC 100-240V (CE)

Accessories Included:

• IEC power cord
• Centering telescope
• Phase slider
• Glass and metal stage inserts
• Blue and green interference filters
• Allen hex keys (2)
• Dust cover
